micro inverter solar and solar string inverter are also suitable for distributed photovoltaic projects, but their product topology and circuit design are fundamentally different. As the brains of solar photovoltaic systems, inverters play a key role in maximizing the potential of solar energy.
In diesem Artikel, we’ll explore the differences between micro inverter solar and solar string inverter , exploring together which inverter technology might be the most suitable choice for your home or business.
Inhaltsverzeichnis
What Is A Micro Inverter Solar?

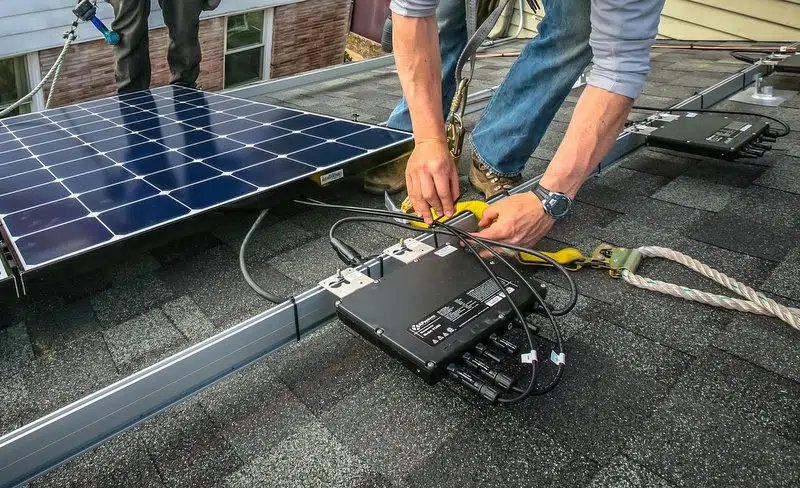

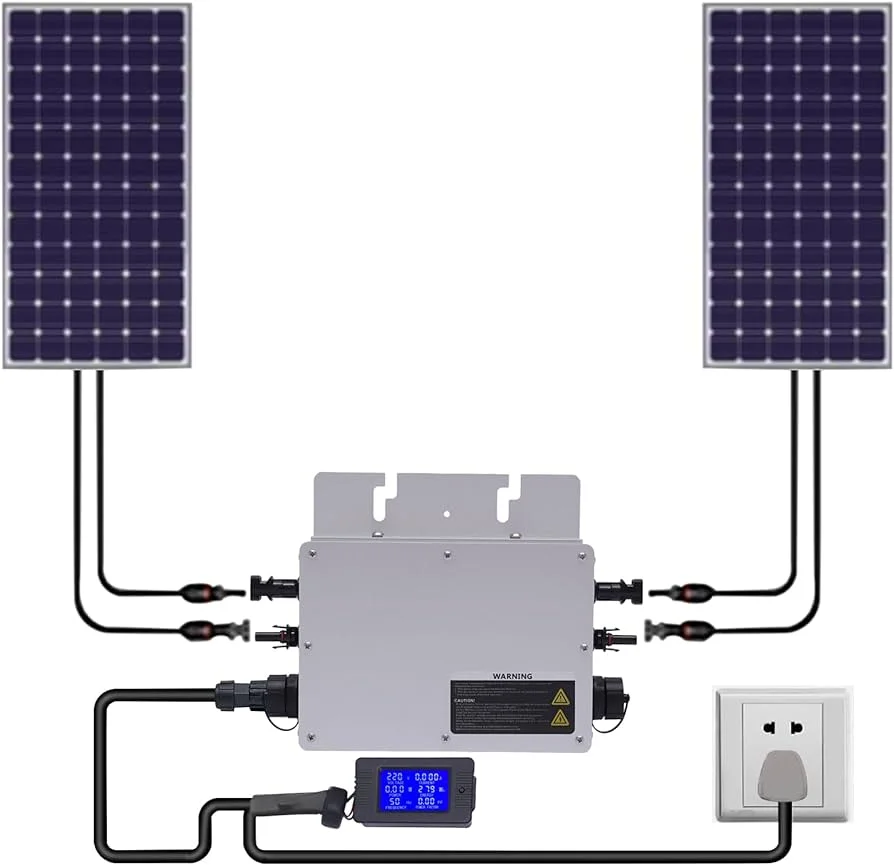

Micro inverter solar convert the direct current generated by individual solar panels in a solar photovoltaic system into alternating current needed for household appliances and the power grid. It is installed directly behind each solar panel. This decentralized design not only improves the efficiency of the entire system, but also allows individual adjustments in case of occlusion or panel mismatches.
Micro inverter solar consist of semiconductor devices, such as insulated-gate bipolar transistors (IGBTs) or metal-oxide-semiconductor field-effect transistors (MOSFETs), that help enable the conversion process. Zusätzlich, they contain components such as capacitors and transformers, which are used to regulate the voltage and ensure the efficiency of the power conversion.
What Is A Solar String Inverter?
Solar string inverter, also known as centralized inverters, are devices used in solar photovoltaic systems to convert direct current from multiple solar panels in series to alternating current. Unlike microinverters, string inverters are connected to the entire string of solar panels and are usually installed in a central location, such as in an inverter box or on a wall. This configuration simplifies installation and reduces cabling complexity, as only one inverter is required for the entire solar array.
The series inverter converts the DC voltage generated by all the series panels into AC voltage through a single conversion step. Zusätzlich, series-type inverters may have limited monitoring capabilities compared to microinverters, as they typically only provide aggregate data for the entire array and cannot display detailed information about each panel.
Advantages And Disadvantages Of Micro Inverter Solar
Advantages
Easy scaling: It allow easy system scaling and are suitable for adding more solar panels to an existing setup.
Panel level monitoring: Microinverters allow individual monitoring of each solar panel so that the user can clearly see the specific performance of each panel.
Flexible design: Micro inverters offer flexible installation and are ideal for complex system designs with panels on multiple roof surfaces. Whether it is a flat roof or a pitched roof, it can be easily handled.
Independent operation: In a micro-inverter system, a problem in one panel will not affect the operation of other panels. Ensure the stability and efficiency of the entire system.
Simplified compliance: It meet fast shutdown requirements without additional equipment, simplifying the installation process and compliance steps.
Nachteile
Difficult to fix: Problems with micro-inverters can be difficult to identify and fix and require expertise and technical knowledge.
Higher price: Compared to centralized inverters and series inverters, the cost of micro inverter solar is higher, which may increase the total budget of the system.
More points of failure: The large number of components in a microinverter system means more possible sources of failure, which increases the need for maintenance.
Limited range of applications: It are usually more suitable for home roofs, relatively few application scenarios, and not suitable for all types of solar systems.
Advantages And Disadvantages Of Solar String Inverter
Advantages
Easy troubleshooting: Since the string inverter system has only one inverter, solving problems and troubleshooting is very simple and requires almost no technical knowledge.
Niedrige Kosten: It are generally cheaper than micro inverters and are ideal for customers on a tight budget.
System design is simple: series inverter small size, light weight, easy to carry and install. There is no need for specialized tools and equipment, nor for specialized power distribution rooms, simplifying construction and reducing footprint in various applications.
Efficiency of shading or single-panel problems: Although shading can affect the overall performance of a string inverter system, some models have a better ability to cope with this situation.
MPPT Wide voltage range: It MPPT wide voltage range, generally 250-800V, making the component configuration more flexible, and in rainy and foggy days can also have a longer power generation time.
Nachteile
Inverter problems affect the entire system: If a string inverter fails or has a problem, the entire solar system can be affected, causing a complete shutdown until the problem is fixed.
Not suitable for high altitude and outdoor environment: The electrical gap of the solar string inverter is small, not suitable for high altitude areas, outdoor installation, the shell and radiator are easy to aging due to wind and sun.
Panel level impact: A problem with one panel can affect the energy generation of other panels in the same string, affecting the performance of the entire system.
Summarize
While micro inverter solar and solar string inverter each have advantages and disadvantages, the final decision depends on factors such as system design, blackout conditions, budget constraints, and monitoring preferences. To find the ideal solution for your unique needs and goals, a detailed consultation with our GycxSolar Solar experts is recommended.

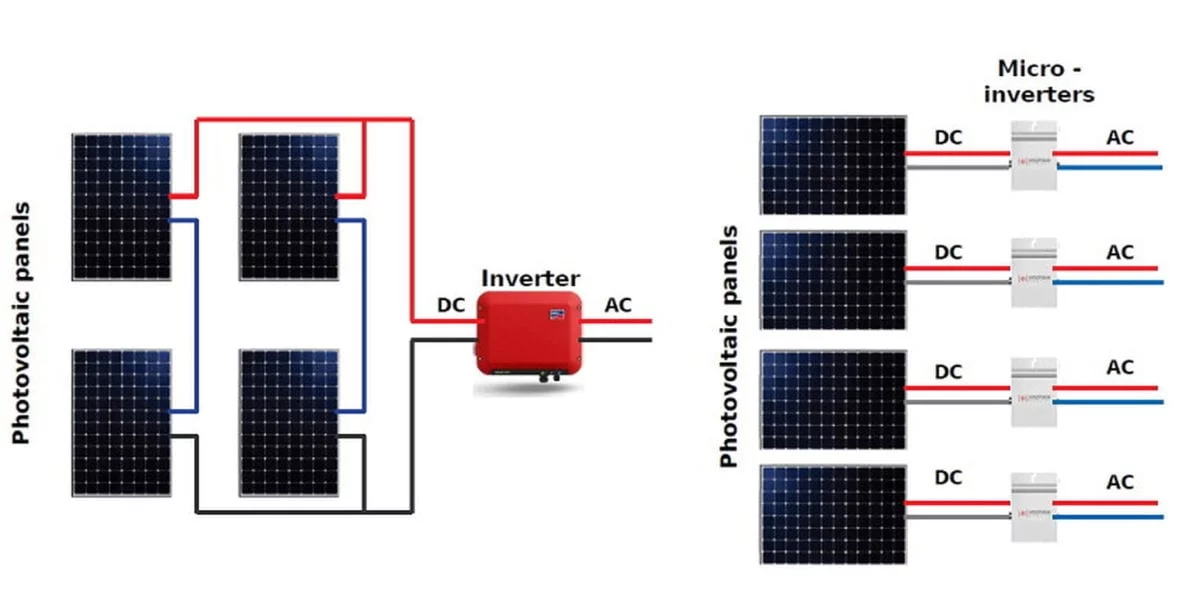

What Is The Difference Between Micro Inverter Solar And Solar String Inverter?
Micro inverter solar and solar string inverter have significant differences in design and application, mainly reflected in the working voltage, structure, Leistung, application scenarios and installation methods:
1.Operating voltage
Micro inverter solar: The photovoltaic modules in the micro inverter system are in parallel mode, there is no voltage superposition between the components, and the DC voltage generally does not exceed 120V.
Solar string inverter: When the system is running, the whole series line voltage accumulation can generally reach 600V~1000V.
2.Konstruktion
Micro inverter solar: A compact device is mounted behind each solar panel.
Solar string inverter: Series inverters are mainly used in small and medium-sized rooftop photovoltaic power generation systems and small ground power stations, connecting multiple series panels.
3.Leistung
Micro inverter solar: produce less power per unit than string inverters.
Solar string inverter: Capable of managing the entire solar array and delivering higher power output per unit.
4.Anwendungsszenarien
Micro inverter solar: Ideal for systems with complex roof patterns, shading issues, or changes in panel orientation.
Solar string inverter: Ideal for panels with consistent orientation and fewer shadows in the system.
5.Way to install
Micro inverter solar: modular design, kleine Größe, light weight, can be directly installed on the photovoltaic support, plug and play, basically does not occupy the installation space independently. During system expansion, you can select the number of inverters based on actual requirements to achieve flexible expansion.
Solar string inverter: Each “string” is connected in series, generally installed near a string of components under the use of fixed brackets or hoop installation equipment fixed on the column, can also be installed on the adjacent wall.
What Are The Good Solar Inverters Brands?
Solar inverters are the behind-the-scenes heroes of solar panel systems that convert solar energy into electricity that home appliances can use. Here are some popular inverters that are trusted brands.
Are Microinverters More Efficient Than String Inverters?
In systems with blackout or inconsistent panel performance, microinverters tend to be more efficient than string inverters. Because microinverters can independently optimize the output of each panel, they reduce the impact of shading or mismatching problems on the entire system. Jedoch, under ideal conditions with no shading and full sunlight, the efficiency difference between the two is actually small and almost negligible.
Are Micro Inverter Solar Safer Than Solar String Inverter?
Both micro inverters and string inverters are designed to meet stringent safety requirements. Jedoch, microinverters provide additional security. It limits the voltage to the range of a single solar panel, reducing the risk of high-voltage DC arcs. Zusätzlich, the decentralized design of microinverters minimizes the possibility of a single point of failure, thereby improving the safety and reliability of the entire system.
Is A Micro Inverter More Expensive Than A String Inverter?
Because microinverters can individually optimize and monitor each panel, their upfront costs are typically higher than those of string inverters. Jedoch, the total cost of ownership for the entire system may vary over its lifetime, depending on factors such as system performance, maintenance needs, and warranty coverage. For your solar system, it is important to weigh the short-term expense of a micro inverter against the long-term advantages.
Microinverters vs. String inverters: Which is best for your home?
Choosing the right solar inverter for you ultimately depends on your home environment and the type of solar installation.
If your roof design is relatively simple, the solar panels are only installed on one side of the house, and there are not many shading issues, we recommend you buy a string inverter and DC optimizer. Optimizers allow you to maximize the power generation of your solar panels while still enjoying the convenience and lower price of just one inverter.
If your system design is more complex, such as solar panels installed on multiple roof planes, then a micro inverter is a better choice. Zusätzlich, if your solar panels are partially shaded throughout the day, a micro inverter can better increase the power generation of each panel. Although the initial price may be higher, you will save more by maximizing the power generation per panel.
Abschluss
The two inverter products have their own suitable subdivision application scenarios and application advantages, in the comparison and selection of micro-inverters and series inverters, it is necessary to choose the appropriate inverter type according to local conditions.
With the continuous improvement of photovoltaic power station requirements in terms of safety, system efficiency and intelligent operation and maintenance, the application of micro-inverters will be more and more extensive. If you are interested in inverters and have needs, you can refer to GycxSolar inverters, I hope this information will be helpful to you.
