Welche Batterie kann auf der Seite montiert werden?

Welche Batterie kann auf der Seite montiert werden?
When you’re designing an energy storage system for your home or business, space is often a primary concern. Sie fragen sich vielleicht, "Do I have to sacrifice precious floor space for a bulky battery, or can batteries be mounted in different positions, like on their side or vertically on a wall?" The answer depends entirely on the battery’s technology, and modern solutions offer incredible flexibility.

The great news is that most modern sealed batteries can be safely mounted in any position. This includes sealed lead-acid types like AGM and Gel, and especially lithium-ion batteries. This versatility is a key feature of the sleek wall-mounted battery systems popular today. The one type you absolutely cannot mount on its side is a traditional flooded lead-acid battery, as its liquid electrolyte would spill.

Bei Gycx Solar, a core part of our design process is creating systems that are not only powerful but also integrate seamlessly and efficiently into our clients’ spaces. The ability of modern lithium batteries to be wall-mounted is a perfect example of this. Let’s explore your questions about mounting and other battery best practices.

Is it OK to lay a lithium battery on its side?

You’re considering a powerful and efficient lithium battery for your energy needs and want to install it in a way that best suits your space. Also, is it actually safe to lay a lithium battery on its side or mount it vertically?

Ja, it is perfectly OK to lay a sealed lithium-ion battery on its side or mount it in any orientation. The vast majority of lithium batteries used for energy storage, insbesondere das Lithium -Eisenphosphat (LFP) chemistry found in high-quality systems, use an immobilized electrolyte (either a gel-like substance or materials held in pouch or prismatic cells). There is no free-flowing liquid inside that could leak or spill. This is precisely why modern an der Wand montierte Batterie products are designed to be installed vertically against a wall, saving enormous amounts of floor space.

Tauchen tiefer: The Advantage of a Spill-Proof Design

The ability to mount a lithium battery in any position is a significant advantage over older battery technologies.

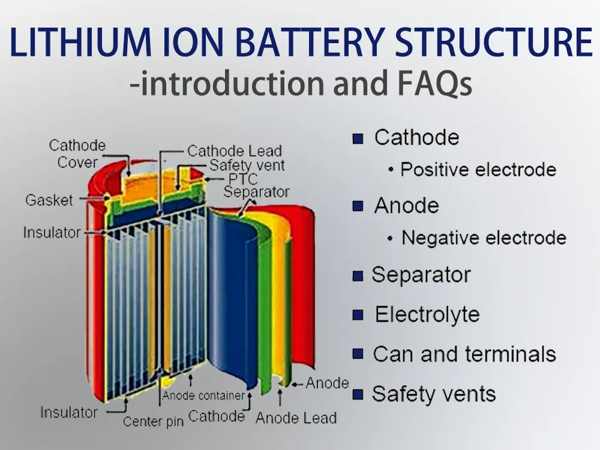

• The Science Inside: Unlike a traditional car battery or flooded deep-cycle battery that holds liquid sulfuric acid sloshing around lead plates, a sealed lithium-ion battery pack contains cells where the electrolyte is either a polymer, a gel, or is fully absorbed into a separator material. All the internal components are securely fixed in place.
• Engineering for Flexibility: Manufacturers design these battery packs to be robust. The internal cells are tightly packed and secured within a durable casing. This means that gravity has no negative effect on their performance or safety, regardless of their orientation.
• The Ultimate Example: Wall-Mounted Batteries: Products like the Tesla Powerwall, Enphase enchladung, and the various LFP wall-mounted BESS (Batterie-Energiespeichersystem) solutions that Gycx Solar offers are the ultimate expression of this benefit. Their entire design, from the internal structure to the external mounting brackets, is optimized for a secure, vertical, wall-mounted installation.
• The Only Exception: Überflutete Blei-Säure: It’s worth repeating that this flexibility does nicht apply to traditional flooded lead-acid batteries. These must stets be kept upright to prevent the highly corrosive liquid acid from spilling out, which would cause severe damage and create a serious safety hazard.

This mounting freedom gives us, as installers, tremendous flexibility to design a system that is not only powerful but also aesthetically pleasing and space-efficient for your home or business.

Do lithium-ion batteries need to be upright?

Let’s tackle this common question head-on. Many of us grew up with the rule that all batteries must be kept upright. Does this old rule apply to the advanced lithium-ion batteries that power everything from our phones to our homes today?

NEIN, modern sealed lithium-ion batteries do not need to be kept upright. Wie wir besprochen haben, their solid or gel-like internal construction makes them spill-proof and position-independent. This freedom from orientation constraints is a major technological advantage over their flooded lead-acid predecessors and is a key enabler for innovative product designs like compact, an der Wand montierte Batterie Systeme.

Tauchen tiefer: Breaking Free from Old Battery Rules

Das "muss aufrecht sein" rule is a holdover from old battery technology. Here’s a helpful way to think about the difference:

• Flooded Lead-Acid Batteries are like an open cup of water: If you tip it, the liquid spills out. The internal lead plates need to be constantly submerged in the liquid electrolyte to function, and the top needs to be open (with vent caps) to allow gases to escape during charging.
• Sealed Lithium-Ion Batteries are like a sealed, modern water bottle: You can turn it upside down or sideways, and nothing leaks out. The energy-storing components are self-contained and don’t rely on a free-flowing liquid.

While it’s safe to mount them in any orientation, always check the manufacturer’s installation manual. In einigen seltenen Fällen, a manufacturer might recommend a "preferred" orientation for optimal heat dissipation via cooling fins or vents designed into the casing. Jedoch, for most high-quality sealed lithium batteries, any orientation is acceptable. This versatility is what allows us at Gycx Solar to design incredibly clean and integrated systems, reclaiming valuable floor space for our clients by using sleek wall-mounted or compact rack-mounted battery solutions.

What not to do with a deep cycle battery?

You’ve invested in a deep cycle battery, which is designed to provide steady power over a long period. To protect that investment and get the maximum lifespan, it’s crucial to know what common mistakes to avoid.

There are several key things you should nicht do with any deep cycle battery, whether it’s lithium or lead-acid. Never let it sit for long periods when fully discharged, as this can cause irreversible damage. Never use an incorrect or incompatible charger, as overcharging can destroy the battery. Never expose it to extreme heat, which accelerates aging. And for flooded lead-acid types specifically, never neglect checking the water levels.

Tauchen tiefer: A Checklist for Battery Care

Here are the crucial "don’ts" for ensuring a long and healthy life for your deep cycle battery:

1. Don’t Leave it Dead: This is a battery killer. For lead-acid batteries, leaving them in a discharged state causes hard sulfate crystals to form on the plates (Schwefelung), which chokes the battery’s ability to accept a charge. Für Lithiumbatterien, discharging to a true zero voltage can cause internal damage. Always recharge your battery as soon as possible after a deep discharge.
2. Don’t Use the Wrong Charger: This is especially critical for sealed batteries like Gel and Lithium. Each battery chemistry has a specific voltage and current profile it needs for safe and effective charging. Using a charger designed for a standard car battery on a deep cycle LFP or Gel battery is a recipe for disaster. Bei GYCX Solar, we ensure the solar charge controller is perfectly programmed for the specific battery technology we install.
3. Don’t Ignore Temperature: Heat is the single biggest enemy of battery lifespan. For every 10°C rise in average operating temperature above 25°C (77° F), a battery’s life can be cut in half. This is especially important in the hot, humid climate of Singapore. Install your batteries in the coolest, most well-ventilated location possible, and out of direct sunlight.
4. Don’t Constantly Drain it to Empty (if avoidable): Während sie "tiefer Zyklus sind," all batteries last longer if they are subjected to shallower cycles. If you regularly use only 50% of your battery’s capacity instead of 90%, you will get significantly more charge cycles over its lifetime. Proper system sizing helps avoid this stress.
5. Don’t Mix Old and New Batteries: When building a battery bank, never mix batteries of different ages, capacities, or types in the same string. The weaker batteries will drag down the stronger ones, leading to an unbalanced and underperforming system that fails prematurely.
6. Don’t Neglect Maintenance (for Flooded Lead-Acid): If you opt for the lower upfront cost of FLA batteries, you must commit to regularly checking and topping up the electrolyte levels with distilled water. Forgetting this is the most common reason they fail. This is a key area where sealed lithium, gel, or AGM batteries offer a huge advantage.

What is a downside of using deep cycle batteries?

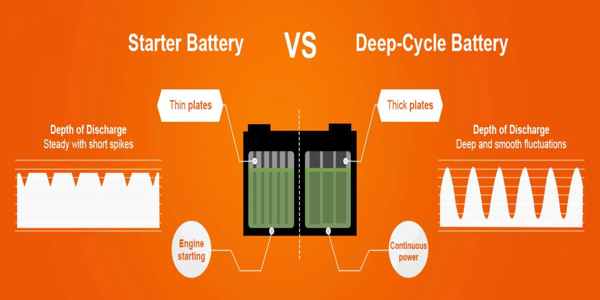

Deep cycle batteries are the workhorses of energy storage, designed to be discharged and recharged repeatedly. But what are the inherent trade-offs or disadvantages you should be aware of when choosing one?

A key downside of many traditional deep cycle batteries, besonders lead-acid types (Überflutet, Hauptversammlung, Gel), is their limited cycle life compared to modern lithium options. They are also very heavy and bulky for the amount of energy they store (low energy density), and they have lower round-trip efficiency, meaning more energy is wasted during charging and discharging.

Tauchen tiefer: The Trade-Offs of Deep Cycle Technology

Let’s look at the downsides, particularly when comparing traditional lead-acid deep cycle batteries to modern lithium solutions like the ones Gycx Solar specializes in:

• Limited Cycle Life: A deep cycle lead-acid battery might be rated for 300-1,000 Fahrräder. A high-quality Lithium Iron Phosphate (LFP) deep cycle battery, in contrast, is typically rated for 3,000 Zu 6,000+ Fahrräder. For a solar system that cycles daily, this is the difference between replacing your batteries every 3-5 years versus having them last 10-20 Jahre.
• Weight and Size (Low Energy Density): Lead-acid is incredibly heavy. A lead-acid battery bank providing 10kWh of usable energy could weigh several hundred kilograms. A modern LFP lithium system, wie a an der Wand montierte Batterie, providing the same energy would be significantly lighter and more compact.
• Lower Usable Capacity (Entladungstiefe - DOD): To preserve the life of a lead-acid battery, it’s generally recommended not to discharge it more than 50%. This means a 10kWh lead-acid battery only provides 5kWh of usable energy. An LFP lithium battery can typically be discharged 90-100%, so a 10kWh LFP battery provides 9-10kWh of usable energy. You need to buy a much larger lead-acid bank to get the same usable energy as a smaller lithium one.
• Geringere Effizienz: The round-trip efficiency of lead-acid batteries is around 80-85%. This means for every 100 watts of solar power you put in, you only get 80-85 watts back out. LFP batteries are much more efficient, at around 95% oder besser.
• Maintenance Requirements (for Flooded Lead-Acid): Wie diskutiert, FLA batteries require regular, hands-on maintenance, which is a significant operational downside.

GYCX Solar Story: "We often have clients ask if they can save money using traditional deep cycle batteries. We show them the long-term math: while the upfront cost of our LFP¹. wall-mounted systems is higher, you don’t have to replace them 2 oder 3 times over the same period, and you get more usable energy and efficiency every single day. The lifetime value is almost always far superior."

The ability to mount modern lithium batteries in any position is a powerful advantage, enabling the clean, space-saving designs of today’s wall-mounted energy storage systems. By understanding the best practices for their care and recognizing the trade-offs compared to older deep cycle technologies, you can make a truly informed decision.

Bei GYCX Solar, our expertise lies in designing systems that leverage the strengths of the best available technology. If you have questions about our wall-mounted battery solutions or other energy storage options, we encourage you to contact us for professional advice.
