When you’re planning an energy storage system, especially in a space-conscious environment like many homes and businesses in Singapore, vertical stacking seems like a logical way to save space. But is it actually safe to stack these powerful battery units? This is a critical question, and the answer is a firm and conditional "yes."

It is only safe to stack batteries if they are specifically engineered and certified for this purpose. Modern stackable battery storage systems are designed with mechanical stability, seguridad eléctrica, and thermal management in mind. Arbitrarily piling up batteries that are not designed to be stacked is extremely hazardous and can lead to short circuits, calentamiento excesivo, instability, y fuego. Professional solutions are key.

En Solar Gycx, safety is the foundation of every system we design. El batería apilable products we use are chosen specifically for their safety features and are installed according to rigorous standards. Let’s dive deeper into the mechanics, benefits, and safety protocols of stacking batteries.

¿Qué hacen las baterías de apilamiento??

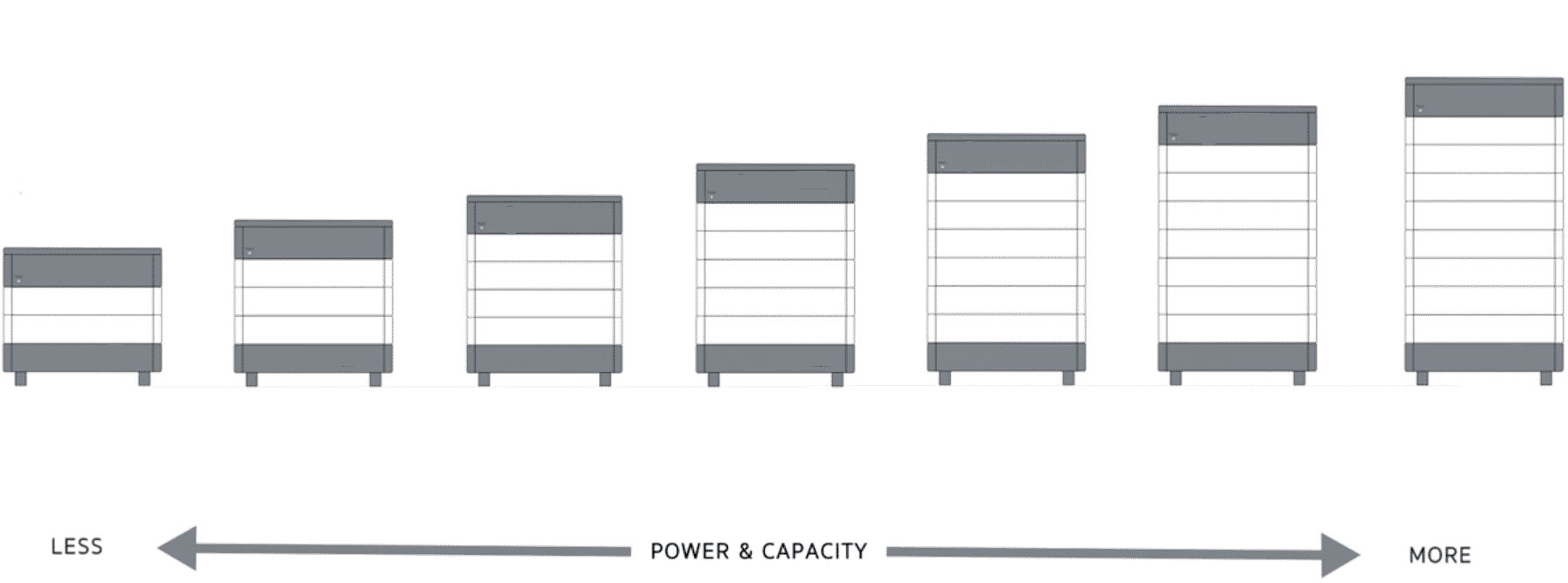

Why are modern energy storage solutions often designed as "stackable" sistemas? What is the actual function and benefit of this modular approach? Stacking batteries is all about achieving scalability and efficiency in your energy storage design.

"Stacking" designed battery modules allows you to build a larger, customized energy storage system from standardized building blocks. Electricamente, this means you can connect the modules in paralelo para aumentar su capacidad de energía total (en kWh) y salida de corriente, o en series to increase the system’s total voltage. Físicamente, it allows for a highly organized, space-efficient, and dense installation, which is a major advantage in space-constrained homes or businesses.

Sumergirse: The Purpose of a Modular Approach

The core functions of a stackable battery system are:

• Escalabilidad: This is the primary benefit. You can start with a capacity that meets your current needs and budget, and then easily add more identical modules later if your energy consumption increases (Por ejemplo, if you buy an electric vehicle). This "pay-as-you-grow" model is both flexible and economical.
• Customization: It allows us as system designers to create a battery bank with the precise kWh capacity required for your unique load profile, rather than being limited to one or two fixed sizes.
• Eficiencia del espacio: By stacking vertically, either directly (if designed for it) or within a professional cabinet or 19-inch rack, you can house a large amount of energy storage in a very small floor footprint. This is invaluable in apartments, condos, or businesses where space is a premium.
• Ease of Installation and Service: Standardized modules with purpose-built connectors can simplify the installation process. If one module were to have an issue years down the line, it can often be serviced or replaced without having to decommission the entire battery bank.

For most Gycx Solar residential and commercial systems, we use stacking to parallel 48V LFP¹. (Fosfato de hierro de litio) módulos, building up the perfect amount of kWh storage to pair with our clients’ solar arrays.

¿Apilar baterías aumenta el voltaje??

This is a common electrical question. Does the physical act of placing batteries one on top of another automatically increase the voltage of the system?

No, physically stacking batteries does not inherently increase voltage. The voltage of the battery bank is determined by how the modules are electrically wired together. To increase voltage, you must connect the modules in serie. If you connect them in paralelo, which is more common for increasing solar storage capacity, the voltage stays the same, but the capacity (in amp-hours or Ah) increases.

Sumergirse: The Electrical Reality of Stacking

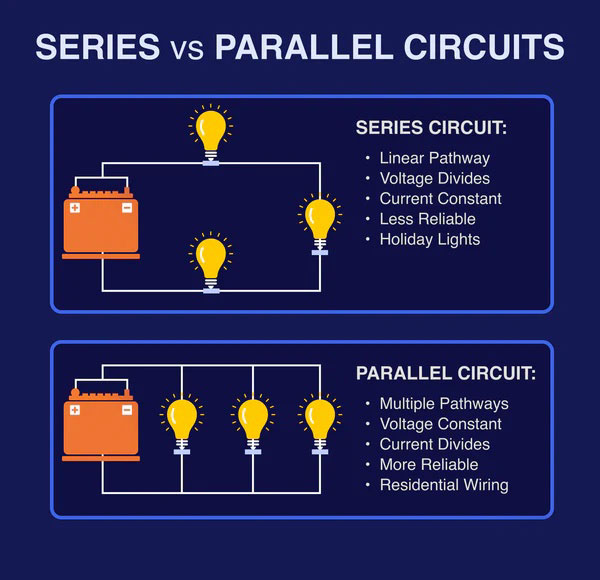

Let’s clarify the two fundamental connection types:

• Conexión en serie (to increase voltage):
  • Conectas lo positivo (+) terminal of the first battery to the negative (-) terminal of the second, etcétera, Creando una cadena.
  • The total voltage is the sum of the individual battery voltages. (p.ej., two 48V modules in series = a 96V system).
  • The total amp-hour (ah) capacity remains that of a single module.
• Conexión paralela (Para aumentar la capacidad):
  • Conectas todo lo positivo (+) terminals together and all the negative (-) Terminales juntos.
  • The total voltage remains the same as a single module (p.ej., connecting two 48V modules in parallel results in a 48V system).
  • The total amp-hour (ah) capacity is the sum of the individual module capacities (p.ej., two 100Ah modules in parallel = a 200Ah bank).

For most modern solar energy storage systems, like the batería apilable solutions Gycx Solar provides, the goal is to build a high-capacity 48V bank. Por lo tanto, we physically stack the 48V modules in a rack and connect them electrically in parallel to achieve the desired total kWh.

Do power stack batteries last longer?

This is an excellent and insightful question. Does creating a larger "power stack" by adding more batteries actually make the system last longer in terms of years and cycles? The answer is a nuanced and powerful "yes."

While the individual battery modules have the same intrinsic lifespan, a larger, correctly sized stacked battery system can indeed last significantly longer than a smaller one powering the same loads. This is because the daily work is shared across more cells, llevando a shallower discharge cycles for each module. A battery that is only discharged 30% each day will endure far more cycles than a battery that is discharged 80% cada día. Por lo tanto, by reducing the daily stress on each battery, the entire system’s operational life is extended.

Sumergirse: The Longevity Bonus of Scalability

Let’s use an analogy. Imagine having to carry 40kg of groceries. If one person does it, it’s a heavy strain. If two people share the load (20kg each), the strain on each person is much less. Batteries work in a similar way.

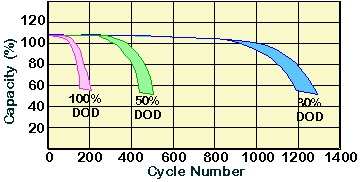

• Cycle Life vs. Profundidad de descarga (Departamento de Defensa): Every quality battery has a spec sheet showing its cycle life at different DoD levels. Por ejemplo, a high-quality LFP battery might be rated for:
  • 3,000 ciclos en 80% Departamento de Defensa
  • 6,000 ciclos en 50% Departamento de Defensa
• A Real-World Example:
  • Assume your home uses 5 kWh of energy from your battery each night.
  • Scenario A (One 10kWh Battery): You discharge your battery by 50% every night (5kWh used / 10kWh capacity). You can expect roughly 6,000 ciclos, or over 16 years of daily use.
  • Scenario B (One 6kWh Battery): You discharge your battery by about 83% every night. This deeper cycle might mean the battery only lasts 3,000 ciclos, or just over 8 años.
• The Benefit of Stacking: By installing a larger, stacked system (p.ej., 15kWh or 20kWh), your 5kWh nightly usage results in a much shallower DoD (33% o 25%). This puts the battery in a very low-stress state, dramatically extending its potential cycle life well beyond the warranty period.

Historia solar gycx: "We always explain this longevity benefit to our clients. Investing in a slightly larger stackable battery bank upfront often means you won’t have to think about battery replacement for a very, very long time. It’s an investment in both capacity and durability."

How high can batteries be stacked?

When planning an installation, especially in a compact space, knowing the physical limits is essential. How high can you actually stack these battery modules?

The maximum height for stacking batteries is determined entirely by the manufacturer’s specifications and the installation method (direct stacking vs. rack mounting). For battery modules specifically designed for direct, interlocking stacking, the manufacturer will state a clear limit, como 4, 6, o 8 units high. For server rack batteries, the limit is determined by the height and certified weight capacity of the equipment rack or cabinet they are installed in. It is never safe to exceed these specified limits.

Sumergirse: Respecting Structural and Safety Limits

Here’s how to determine the safe stacking height:

• Apilamiento directo: If the battery modules are designed with interlocking casings, the product’s installation manual is your absolute guide. It will specify the maximum number of modules that can be stacked on a level, stable surface. This limit is based on the structural integrity of the casings and the stability of the resulting tower.
• Apilamiento de estantería/gabinete: This is the most common and professional method for building larger stacks.
  • Rack Height (U-Space): Racks are measured in "U" unidades (1U = 1.75 pulgadas). A 24U rack has less vertical space than a 42U rack. You can stack as many modules as will physically fit, leaving adequate space for ventilation.
  • Capacidad de peso: This is a critical, often overlooked limit. A standard equipment rack has a specific weight capacity (p.ej., 500 kg, 1000 kg). Each battery module can be heavy (p.ej., 40-50 kg). You must sum the weight of all planned modules and ensure it does not exceed the rack’s certified limit.
  • Anchoring: For safety, any tall or heavy rack, especially in a place like Singapore, should be securely anchored to the floor (and sometimes the wall) to prevent any risk of tipping.
• Thermal Considerations: Stacking batteries high in a cabinet also requires thought about heat dissipation. Heat rises, so the modules at the top can get warmer. Professional battery cabinets are often designed with ventilation or fan systems to ensure consistent temperature throughout about the stack, which is vital for battery health in our hot climate.

En Gycx Solar, our installation process includes a thorough assessment of these factors. We ensure that every almacenamiento de batería apilable system is installed in a manner that is not only electrically sound but also mechanically stable and safe for the long term.

Entonces, is it safe to stack batteries? Sí, when you use modern, modular batería apilable systems that are specifically engineered for that purpose and installed professionally. Stacking allows you to create a powerful, scalable energy storage solution. By sizing your stack correctly, you can even extend its operational lifespan.

If you’re interested in exploring how a safe, escalable, and long-lasting stackable battery system can power your home or business, Nuestro equipo en GYCX Solar tiene la experiencia para guiarlo. Contáctenos hoy para una consulta profesional!
