When you’re in the market for a deep-cycle battery, you’ll find that the "lead-acid" category is broader than you might think. A common question we get is, "What exactly is a gel battery, and how is it different from a standard lead-acid battery?" Understanding this technology is key to choosing the right power solution for your needs.

A lead-acid gel battery, commonly known as a "gel battery," is a specific type of sealed lead-acid battery (VRLA). Unlike traditional flooded lead-acid batteries that contain liquid electrolyte, a gel battery uses a thickened, electrolito gelificado (sulfuric acid mixed with silica). This key difference makes the battery spill-proof, vibration-resistant, and completely maintenance-free, offering a significant convenience advantage over its traditional counterparts.

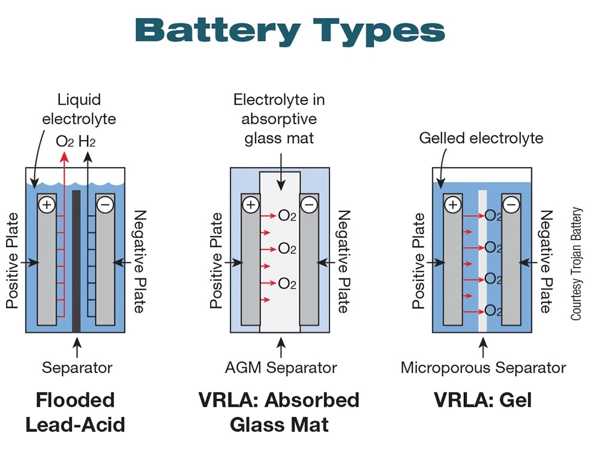

A cutaway image of a gel battery cell, showing the thick, putty-like gel electrolyte surrounding the lead plates, contrasted with a sloshing liquid in a traditional battery.
Inside a Lead-Acid Gel Battery

En Solar Gycx, we provide various battery technologies because we know each has its place. Understanding the nuances of a lead-acid gel battery helps you decide if its unique benefits are the right fit for your application. Let’s explore some common questions.

What kills a lead-acid battery?

Whether you have a gel, Prolongación, or traditional flooded battery, all lead-acid batteries are susceptible to similar failure modes. Knowing what "kills" them is the first step toward prevention and maximizing their lifespan.

The most common killers of any lead-acid battery are sulfation (which occurs when a battery is left in a discharged state), chronic undercharging, y sobrecargar (which damages plates and dries out sealed types). Other major factors include extreme heat, which accelerates degradation, constante deep discharges beyond its rating, and for flooded types specifically, a simple lack of maintenance (not topping up with water).

An infographic showing the main
Common Causes of Lead-Acid Battery Failure

Sumergirse: The Enemies of Battery Longevity

Let’s look at these failure modes in more detail:

  1. Sulfation (The Silent Killer): If a lead-acid battery is not fully recharged promptly after use, or sits in a discharged state, hard crystals of lead sulfate form on the lead plates. These crystals choke the battery’s ability to accept and deliver power. Severe sulfation is often irreversible.
  2. Sobrecarga: Using an incorrect or faulty charger that applies too much voltage or current "cooks" la batería. In a flooded battery, it causes excessive water loss. In a sealed gel battery, it’s even more destructive as it permanently dries out the electrolyte.
  3. Undercharging: Consistently not bringing the battery back to a full 100% charge also allows sulfation to build up over time, gradually reducing its capacity.
  4. Extreme Heat: Heat is the ultimate enemy of lead-acid batteries. It accelerates corrosion of the internal plates and increases water loss in flooded types and drying in sealed types. A battery operated in a hot climate (p.ej., average 90°F / 32°C) may only last half as long as the same battery kept at 77°F / 25°C.
  5. Excessive Deep Discharges: While they are "deep cycle," draining a battery completely every time puts significant strain on it and will lead to a shorter cycle life compared to shallower discharges.
  6. Neglect (for Flooded Batteries): For traditional flooded types, simply forgetting to check and top up the electrolyte levels with distilled water is the most common reason for premature failure. The tops of the lead plates become exposed, and that part of the battery is permanently damaged. This is a problem that gel and other sealed batteries completely solve.

Que es mejor, lead acid or gel batteries?

This is the classic question. To answer it, we need to remember that a gel battery es a lead-acid battery. The real comparison is between a sealed gel battery y un traditional flooded lead-acid (Fla) batería.

Neither is universally "better"; the best choice is a trade-off between convenience and cost. A gel battery is better if you prioritize a maintenance-free, derramado, and easy-to-install solución. A traditional flooded lead-acid (Fla) battery is better if your primary concern is achieving the lowest possible upfront cost and you don’t mind performing regular maintenance.

A simple comparison table or graphic showing Gel Battery (Pros: No Maintenance, Safe, Flexible Install; Cons: High Cost, Charge Sensitive) vs. Flooded Lead-Acid (Pros: Low Cost; Cons: Needs Maintenance, Spills, Ventilation).
Gel vs. Ácido de plomo inundado: A Trade-Off

Sumergirse: A Head-to-Head Comparison

Let’s compare them across key categories:

  • Mantenimiento:
    • Gel: Winner. It’s sealed and requires no watering or electrolyte checks.
    • Fla: Requires regular distilled water top-ups and terminal cleaning.
  • Seguridad & Instalación:
    • Gel: Winner. It’s spill-proof, even if the case is damaged, and can be mounted in any position. It also produces minimal gas during normal operation, making it safer for less ventilated areas.
    • Fla: Must be installed upright to prevent acid spills. It vents flammable hydrogen gas during charging and requires a well-ventilated enclosure.
  • Costo inicial:
    • Fla: Winner. It offers the lowest cost per amp-hour at the time of purchase.
    • Gel: Carries a significant price premium for its convenience and sealed design.
  • Cargando:
    • Fla: More robust and forgiving of slight variations in charging voltage.
    • Gel: Very sensitive. Requires a specific, lower-voltage charging profile to prevent permanent damage.
  • Durabilidad:
    • Gel: More resistant to damage from vibration and shock.
    • Fla: Can be extremely durable and long-lasting if meticulously maintained.

El "mejor" choice depends on your application. For a remote solar installation where maintenance is difficult, gel is better. For a budget-conscious user with an easily accessible battery box, FLA can be a great value.

Can you replace a lead-acid battery with a gel battery?

You’re using a traditional flooded lead-acid (Fla) battery and are tired of the maintenance. Can you simply buy a gel battery of the same size and swap it in?

Sí, you can often replace a flooded lead-acid battery with a gel battery, but this comes with one critical, non-negotiable condition: you MUST ensure your charging system is compatible with gel batteries. This means your solar charge controller, vehicle alternator regulator, or AC charger must have a specific "GEL" setting or be replaced with one that does. Simply swapping the battery while using a charger programmed for flooded batteries will quickly destroy your new, more expensive gel battery.

An image showing an old flooded battery being removed and a new gel battery being installed, with a large arrow pointing to the charger/controller, indicating it must be checked or changed.
Upgrading to Gel Battery: Charger Compatibility is Key

Sumergirse: The Critical Compatibility Check

If you’re planning this upgrade, follow this checklist:

  1. Verify Physical and Electrical Specs: Ensure the new gel battery has the same nominal voltage (p.ej., 12V), similar physical dimensions to fit your space, and an appropriate amp-hour (ah) capacity for your needs.
  2. AUDIT YOUR CHARGING SYSTEM (The Most Important Step):
    • Look at every device that charges your battery (solar controller, shore power charger, etc.).
    • Check if it has selectable battery type settings (p.ej., a switch or digital menu with options for "Flooded," "AGM," and "GEL").
    • If a "GEL" setting exists: You’re good to go! Make the swap and ensure you change the setting on your controller(s) to "GEL."
    • If no "GEL" setting exists: Your current charger is incompatible. Its voltage is too high for a gel battery. Tú must replace the charger with a modern smart charger that has a gel profile at the same time you install the new battery.
      Historia solar gycx: "This is a frequent consultation we have at Gycx Solar. A client wanted to upgrade to gel batteries for their RV. We assessed their existing solar controller and found it was a basic, non-programmable model. We were able to source the right gel batteries and a new, correctly programmed controller as a package, ensuring their upgrade was successful and their new batteries would provide years of maintenance-free service."

Is a gel battery worth the extra money?

Gel batteries come with a higher price tag than their flooded counterparts. This leads to the ultimate question: is that extra cost really justified?

A gel battery is worth the extra money if you place a high value on convenience, seguridad, y flexibilidad de instalación. If you need a battery for an application where regular maintenance is difficult or impossible, where acid spills would be catastrophic, or where the battery must be installed in an orientation other than upright, then the premium price for a gel battery is often well worth it for the peace of mind and hassle-free operation it provides.

A balance scale weighing a Gel Battery with
Is a Gel Battery Worth the Extra Money? A Balance of Cost and Convenience

Sumergirse: Analyzing the Value Proposition

Let’s break down when the extra cost makes sense:

  • It’s Worth It If:
    • Maintenance is a hassle: Your batteries are in a hard-to-reach location, or you simply don’t want the chore of checking water levels.
    • Safety is paramount: The battery is installed inside a boat cabin, RV living space, or a poorly ventilated area where hydrogen gassing and potential acid spills are unacceptable risks.
    • Your application involves vibration: Such as in an off-road vehicle or marine vessel, where the gel’s shock resistance is a significant advantage.
    • You require flexible mounting: Your space requires the battery to be installed on its side or at an angle.
  • It Might NOT Be Worth It If:
    • Your primary goal is the lowest possible upfront cost.
    • Your batteries are in an easily accessible, well-ventilated battery box.
    • You are diligent and don’t mind performing the routine maintenance that flooded batteries require.
  • The Next Level of Value: Litio (LFP):
    It’s also worth noting that if you’re already considering paying a premium for the convenience of gel, it often makes sense to evaluate modern LFP (Fosfato de hierro de litio) baterias. While they have an even higher upfront cost, LFP1 batteries offer all the maintenance-free, spill-proof benefits of gel, but with a vastly superior lifespan (5-10 times more cycles), mayor eficiencia, peso más ligero, and greater usable capacity. En Gycx Solar, we help our clients compare the lifetime value of all these options to find the smartest long-term investment.

Entonces, is a gel battery better than a traditional flooded lead-acid battery? It’s a classic trade-off: convenience vs. costo. A gel battery provides a safe, versatile, and maintenance-free solution, but this comes at a premium price and requires a precise, compatible charging system.

Whether a gel battery is the right choice for you, or if a traditional flooded battery or a modern lithium system would be a better fit, our expert team at Gycx Solar can help you understand the pros and cons for your specific needs. Contact us today for a professional consultation!


  1. Comprender el concepto de LFP lo ayudará a comparar y comprender mejor los conceptos de datos relacionados con la batería.
