Que es mejor, una batería AGM o gel?

Que es mejor, una batería AGM o gel?

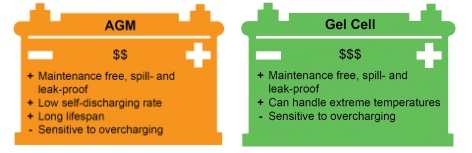

When you’re looking for a reliable, maintenance-free battery for your solar system, bote, o poder de respaldo, you’ll quickly run into two popular options: AGM and Gel. They are both types of sealed lead-acid batteries, but they use different technologies internally, which makes them better suited for different jobs. Entonces, which one is truly better?

Neither AGM nor Gel is universally "better"; the best choice depends on your specific application. En breve, Prolongación (Alfombra de vidrio absorbente) batteries are generally better for applications requiring high power output (like starting an engine) and faster charging.Gel batteries often excel in slow, deep-discharge applications and can be more tolerant of very high ambient temperatures.

En Gycx Solar, we work with a wide range of battery technologies, and our expertise lies in matching the right battery to the right job. Let’s break down the differences between AGM and Gel to help you make an informed decision.

Are AGM batteries lead-acid or gel?

With all the acronyms, it’s easy to get confused. Are AGM and Gel competing technologies, or are they related? Let’s clarify the battery family tree.

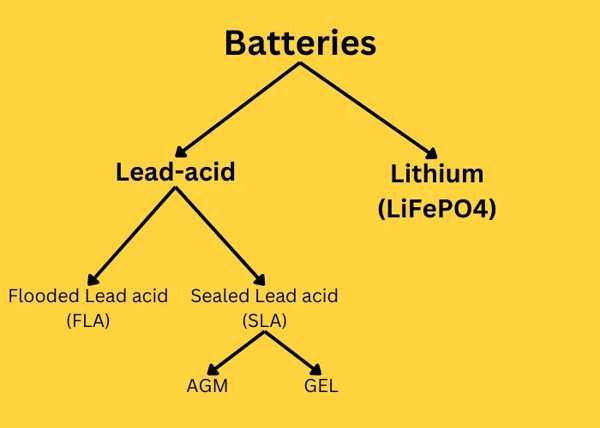

AGM batteries are a type of ácido de plomo batería, but they are no Baterías de gel. Think of "Lead-Acid" as the main family name. Under that family, you have two main branches: traditional "Flooded" baterias (which need maintenance) and "Sealed Lead-Acid" or VRLA batteries (which are maintenance-free). Both AGM and Gel are two different kinds of sealed VRLA batteries. The key difference between them is how they immobilize the acid electrolyte inside.

Sumergirse: A Quick Guide to the Terminology

• Batería de plomo-ácido: The overall category of battery that uses lead plates and a sulfuric acid electrolyte.
• Ácido de plomo inundado (Fla): The traditional, "wet-cell" tipo. The lead plates are submerged in liquid acid, and it requires regular topping-up with distilled water.
• Ácido de plomo sellado (VRLA – Valve Regulated Lead-Acid): The maintenance-free category. The battery is sealed, and internal gases are recombined.
  • Prolongación (Alfombra de vidrio absorbente): The acid is absorbed and held in place by very fine fiberglass mats sandwiched between the lead plates.
  • Gel: The acid is mixed with silica fume to create a thick, viscous gel that doesn’t flow.

Entonces, while both are sealed and maintenance-free, the method they use to contain the acid gives them different performance characteristics.

How to tell if battery is AGM or gel?

You have a sealed lead-acid battery, but you’re not sure if it’s an AGM or a Gel. Knowing the difference is critical because they require different charging profiles. How can you identify which type you have?

The most reliable way to tell if a battery is AGM or Gel is to read the label on the battery case. Most manufacturers will clearly print "AGM," "Absorbent Glass Mat," "Gel," or "Gel Cell" on the sticker. If the label is worn or unclear, your next best step is to look up the model number online on the manufacturer’s website. The product’s intended application can also be a clue.

Sumergirse: Your Identification Checklist

Here are the steps to identify your battery type:

1. Read the Label Carefully: This is the most direct method. Look for the technology name. Sometimes it might just say "VRLA" or "Sealed Lead-Acid," in which case you may need to dig deeper.
2. Search the Model Number: Every battery has a model number (p.ej., "8A31DT" or "GPL-31T"). A quick internet search for that model number will almost always lead you to a product page or technical data sheet that specifies the chemistry.
3. Consider the Original Application:
   • AGM batteries are excellent at delivering high current, so they are very common in high-performance vehicles with start-stop technology, cars with powerful audio systems, and for marine or RV engine starting.
   • Baterías de gel excel at slow, steady, descargas profundas. They are often found in electric mobility scooters, powered wheelchairs, and some telecom or off-grid solar applications.
4. Why It’s Critical to Know: You must know the type to select the correct charging profile on your smart charger or solar charge controller. Using an AGM setting on a Gel battery (or vice-versa) can lead to undercharging or overcharging, both of which will shorten the battery’s life.

¿Cuál es la vida útil de una batería de gel??

When you invest in a batería de gel¹, you want to know how many años de servicio² you can expect. Con el cuidado adecuado y las condiciones correctas, they can be durable performers, but their life is finite.

A quality deep-cycle gel battery typically has a vida calendario de 5 a 10 años. En términos de uso, puede entregar en cualquier lugar desde 500 en exceso 1,000 ciclos de carga de carga. This lifespan is not guaranteed and is highly dependent on several critical factors, most notably correct charging, temperatura de funcionamiento, y que profundamente se descarga on a regular basis.

Sumergirse: Factors That Determine Longevity

The actual service life you get from your gel battery will be determined by these key variables:

• Método de carga: As we’ll discuss next, using the correct gel-specific charging profile is the single most important factor. Sobrecarga o subcargada constantes acortará drásticamente la vida de la batería.
• Temperatura de funcionamiento: El calor es el enemigo de todas las baterías de plomo-ácido. The ideal operating temperature is around 25°C (77° F). In a consistently hot climate like Bangkok’s, a battery kept in a poorly ventilated space can see its service life cut in half.
• Profundidad de descarga (Departamento de Defensa): Esto se refiere a cuánto de la capacidad de la batería usa en cada ciclo.. Una batería que solo se descarga a 30% de su capacidad durará muchos más ciclos que uno que se descarga constantemente a 80%.
• Cómo se compara:
  • VS. Prolongación: The lifespan of AGM and Gel batteries is often comparable when both are treated well, though Gel can sometimes offer a slight edge in cycle life for slow, descargas profundas, while being less tolerant of improper charging.
  • VS. Litio (LFP): The difference is significant. Una batería LFP moderna, que GYCX Solar a menudo recomienda para la energía solar, ofrece una vida mucho más larga (10-20 años y 3,000-6,000+ ciclos), making it a superior long-term investment for daily cycling applications.

Does a gel battery need a special charger?

You’ve chosen a gel battery for its maintenance-free benefits³. Can you just use any standard battery charger to keep it topped up? This is a critical point where a mistake can be very costly.

Sí, absolutamente. Gel batteries require a compatible smart charger that has a specific "GEL" perfil de carga. Using a standard charger designed for traditional flooded car or deep-cycle batteries will almost certainly damage or destroy a gel battery over time. The charging voltage and algorithm must be precisely matched to the gel chemistry to ensure its health and longevity.

Sumergirse: Por qué el cargador correcto no es negociable

He aquí por qué un cargador compatible con gel es esencial:

• Previene el sobrevoltaje: Gel batteries are very sensitive to high voltage. A proper gel profile uses lower voltage setpoints (Por lo general, superando alrededor de 14.1v - 14.4V). A standard flooded battery charger might push the voltage to 14.8V or higher, which will "cook" el gel.
• Evita la igualación destructiva: Muchos cargadores por baterías inundadas tienen una "igualación" modo, which is a controlled overcharge designed to balance the cells. Este proceso es altamente destructivo para una batería de gel.. It causes the water in the gel electrolyte to break down into gas that is vented from the battery. Dado que no puedes agregar agua, Esto seca permanentemente el gel, ruining its capacity.
• Multi-Stage Charging: Un cargador inteligente con un perfil de gel utiliza un algoritmo de varias etapas (p.ej., a granel, absorción, flotar) que se adapta precisamente a lo que necesita una batería de gel. It charges efficiently and then drops to a safe "float" voltage to maintain the battery without overcharging it.
• AGM is Different Too: It’s important to note that AGM batteries also have their own specific charging profile, which is different from both Gel and Flooded. A good multi-chemistry charger will have separate settings for each.

Historia solar gycx: "We always tell our customers that the charger is just as important as the battery itself. When we design a system, whether it’s solar or backup power, we ensure the solar charge controller or AC charger is perfectly programmed for the battery technology being used. This protects the customer’s investment and is a key part of our professional advantage."

Entonces, which is better, AGM or Gel? Es una compensación. AGM is a fantastic, versatile workhorse, great for both high-power and deep-cycle use. Gel is a specialized deep-cycle performer that can be more durable in very hot climates but requires more precise charging. For many modern solar applications, the conversation now includes LFP lithium, which offers superior lifespan and performance.

En Solar Gycx, we have the expertise to help you navigate these choices. We can analyze your needs to recommend the battery technology—be it AGM, Gel, or Lithium—that will provide the best value and performance for your specific application. Contáctenos hoy para una consulta profesional!
