产品描述

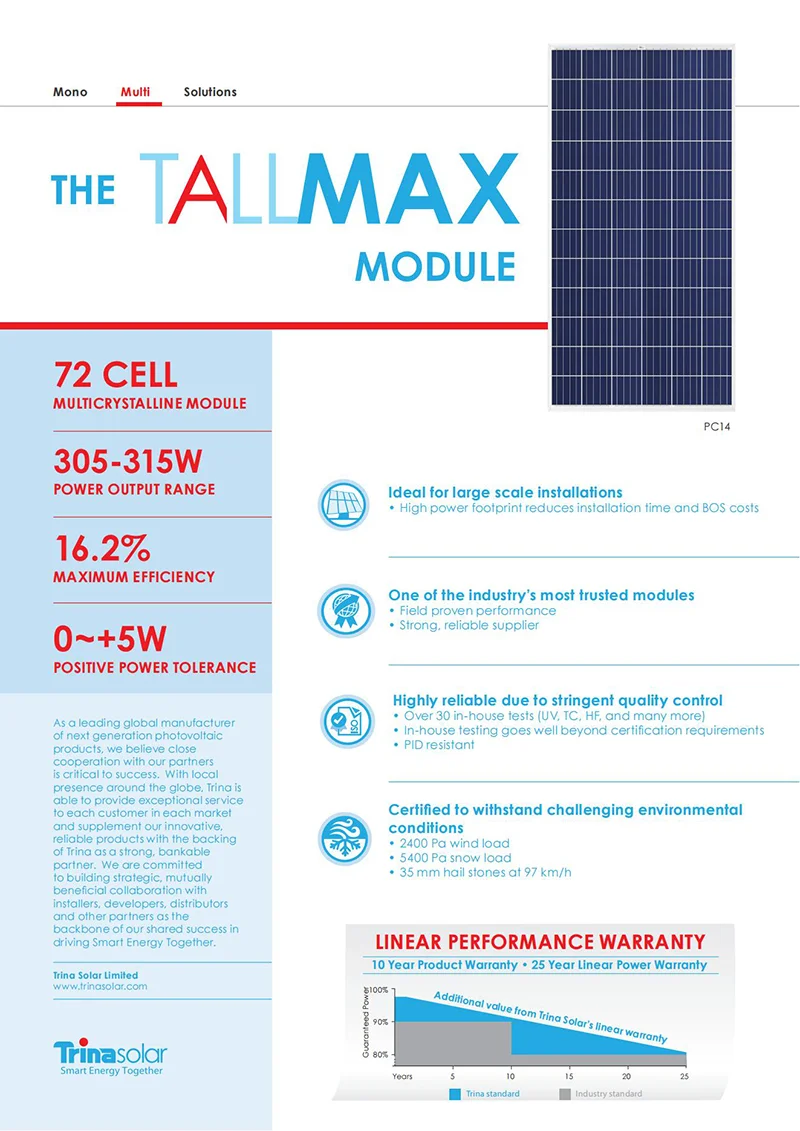

Ideal for large scale installations
The presence of a high power footprint leads to a reduction in installation time and overall balance of system (博世) 成本.
One of the industry’s most trusted modules
This module is widely regarded as one of the most trusted in the industry, with a track record of field-proven performance. It is supplied by a strong and reliable supplier.
由于严格的质量控制而高度可靠
Trina Solar’s module undergoes over 30 内部测试, 包括紫外线, TC, 高频, and many more. Our rigorous in-house testing surpasses the standard certification requirements. 此外, our module is resistant to potential-induced degradation (PID).
机械参数
太阳能电池 | Multicrystalline 156×156mm (6 inches) |
号. 细胞数 | 72 细胞 |
模块尺寸 | 1956×992×40mm |
重量 | 22.5公斤 |
背板 | White |
接线盒 | IP65 or 67 rated |
电气参数 (STC测试)
峰值功率瓦数-PMAX (水压) | 305-315 |
功率容差-PMAX (瓦) | 0 ~ +5 |
最大电源电压 (V) | 36.6-37.1 |
最大功率电流 (A) | 8.33-8.51 |
开路电压-VOC (V) | 45.5-45.6 |
短路电流 (A) | 8.81-9.00 |
模块效率 η m (%) | 15.7-16.2 |
GYCX太阳能: 您通往更光明未来的道路
GYCX Solar 是您通向更光明的大门, 更可持续的未来. 凭借我们最先进的太阳能电池板和无与伦比的质量, 我们提供利用太阳能的最佳选择. 我们诚信的团队, 实惠的价格, 全面的解决方案让太阳能变得轻而易举.
今天就加入我们,拥抱太阳能的无限潜力,共创绿色明天.
