Como você monta um rack da UPS?

Como você monta um rack da UPS?
Então, Você tem uma fonte de alimentação ininterrupta de montagem rack (UPS) and you’re ready to get it installed. Looking at the server rack, the UPS, and the bag of rails and screws can sometimes feel a bit daunting. "Mounting a UPS rack" – or more accurately, mounting a rackmount UPS into an equipment rack – requires a bit of planning and care, but it’s definitely manageable. We’ll guide you through the general process for a secure and professional setup.

Mounting a rackmount UPS typically involves first preparing your 19-inch equipment rack, ensuring it’s stable (ideally anchored). Então, you’ll install the rail kit that came with your UPS (or a compatible one) onto the rack’s vertical posts, making sure it matches your rack type (2-post or, more commonly for UPS units, 4-post). Próximo, you carefully slide and lift the UPS unit onto these rails, secure it in place with screws, e finalmente, connect your power and load cables. Segurança, careful measurement, and often an extra pair of hands for heavier units are key to a smooth installation.

Enquanto Gicx Solar primarily focuses on harnessing solar energy and large-scale battery storage, we understand that the reliability of all supporting equipment is vital. Whether it’s a UPS for your IT gear or for critical monitoring components of an energy system, a proper installation is fundamental. Let’s break down the process and related questions.

How do you set up a rack mount?

Setting up a "rack mount" – that is, organizing and installing equipment within an equipment rack, especially when including a UPS – isn’t just about filling spaces. A thoughtful setup ensures safety, eficiência, ease of access, e desempenho ideal para todo o seu equipamento.

A well-planned rack setup involves several key steps: planning the layout of all your equipment (placing heavier items like the UPS at the bottom for stability), ensuring adequate airflow para refrigeração, meticulously managing cables for neatness and safety, clearly labeling all components and connections, and carefully considering power distribution from the UPS to the other devices within the rack.

Mergulhe mais fundo: Best Practices for Rack Setup

Here’s a more detailed look at achieving an optimal rack setup, particularly when a UPS is involved:

1. Plan Your Layout: Before you start installing anything, sketch out where each piece of equipment will go.
   • Distribuição de peso: Always place the heaviest items, like UPS units and large servers, na parte inferior do rack. This lowers the center of gravity and prevents the rack from becoming top-heavy and unstable (APC por Schneider Electric, Eaton).
   • Fluxo de ar: Understand the airflow patterns of your equipment (usually front-to-back or front-to-top for rackmount gear). Ensure that cool air can reach the inlets and hot air can be exhausted effectively. Don’t block vents.
   • Spacing: Leave 1U of space between heat-generating devices if possible, or use blanking panels to fill empty U-spaces to maintain proper airflow pathways.

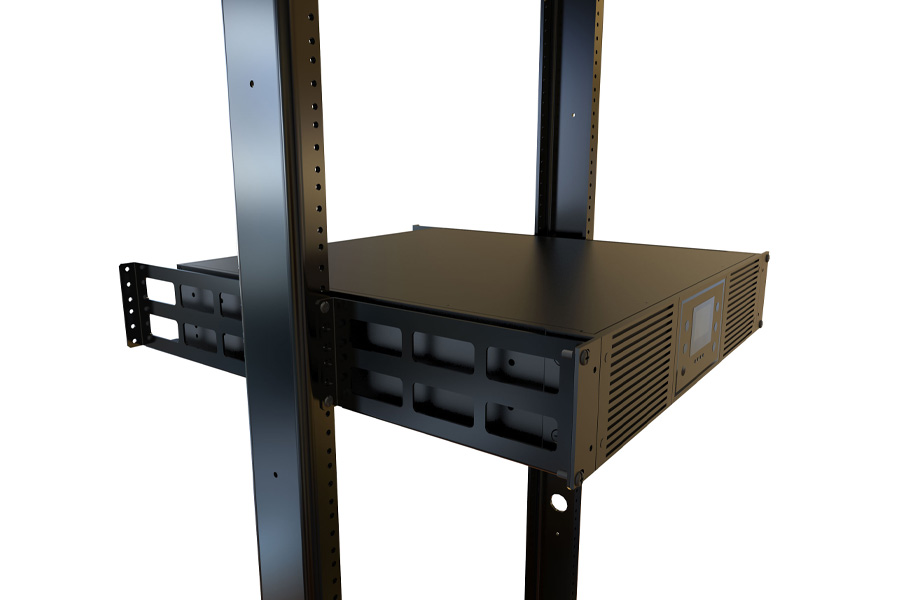

2. Install the UPS (and other heavy gear) Primeiro: Start from the bottom up. This makes the rack more stable as you work.
3. Cable Management is Key:
   • Route power cables separately from data cables to minimize interference.
   • Use Velcro straps or cable ties (loosely, to avoid pinching) to bundle cables neatly.
   • Utilize vertical cable managers on the sides of the rack and horizontal managers between equipment.
   • Leave enough slack for servicing equipment (Por exemplo, sliding a server out on its rails) but not so much that it creates a tangled mess.
4. Distribuição de poder:
   • Connect your critical equipment to the UPS outlets.
   • For racks with many devices, use rackmount Power Distribution Units (Pdus) that are fed by the UPS. PDUs provide multiple outlets in a convenient strip. Some are basic, while "smart" or "managed" PDUs offer remote outlet control and power monitoring.
5. Label Everything: Clearly label each piece of equipment, each port, and each cable at both ends. This will save you immense time and frustration during troubleshooting or upgrades.
6. Ensure Adequate Ventilation for the Rack Itself: The room or closet housing the rack needs proper ventilation or cooling to dissipate the heat generated by all the equipment, including the UPS.

How do you anchor a power rack?

If your "power rack" (equipment rack) is going to house heavy items like servers, and especially one or more UPS units, ensuring it’s stable and won’t tip over is absolutely critical for safety and equipment protection. This is where anchoring comes in.

Anchoring an equipment rack typically involves bolting it securely to the floor (most common for 4-post racks with heavy loads) and/or attaching it to a stable wall. The specific method and hardware depend on the type of floor (Por exemplo, concrete, wood), the weight of the equipment the rack will hold, and local building codes, especially in areas prone to seismic activity. For heavy UPS units, floor anchoring is highly recommended to prevent any chance of the rack tipping over.

Mergulhe mais fundo: Ensuring Rack Stability

Here’s why and how you should anchor your equipment rack:

• Why Anchor?
  • Segurança: This is the primary reason. A rack filled with heavy servers and UPS units can easily weigh hundreds, if not thousands, of pounds. A tip-over can cause serious injury and catastrophic equipment damage.
  • Stability: Anchoring prevents the rack from shifting or wobbling, especially when installing or servicing heavy components.
  • Seismic Compliance: In earthquake-prone regions, building codes often mandate seismic anchoring for equipment racks to prevent them from falling during an earthquake.
• Methods of Anchoring:
  • Floor Anchoring (Most Common for Heavy Racks):
    • Concrete Floors: This typically involves drilling holes into the concrete slab and using heavy-duty concrete anchor bolts (like wedge anchors, sleeve anchors, or epoxy anchors) through the rack’s base plates.
    • Wood Floors: Lag bolts can be used to secure the rack to floor joists or a solid wood subfloor. Spreading the load with base plates might be necessary.
  • Wall Anchoring: The top or sides of the rack can be secured to wall studs or a solid masonry wall using appropriate brackets and hardware. This is often done in addition to floor anchoring for taller racks or extra stability.
  • Anti-Tip Legs/Feet: Some racks come with extendable feet or brackets designed to increase the footprint and prevent tipping, but for very heavy loads like multiple UPS units, these are generally not sufficient on their own and should be complemented by proper anchoring.
• Considerations:
  • Capacidade de peso: Ensure your rack itself is rated for the total weight of the equipment you plan to install.
  • Professional Help: If you’re dealing with extremely heavy loads, complex installations, or are unsure about structural requirements, it’s always best to consult with a qualified structural engineer or professional rack installer.

Properly securing the rack is a foundational step before you even think about sliding in that heavy UPS. Segurança primeiro!

How does a rack mount work?

What’s the actual mechanism behind rack mounting? How does all that diverse equipment – servers, interruptores de rede, painéis de remendo, and UPS units – fit so neatly and securely into those tall metal frames? It all comes down to a clever and widely adopted set of industry standards.

Rack mounting works by using a standardized 19-inch wide frame (o rack de equipamentos) that has vertical mounting rails with regularly spaced holes. Equipment designed for rack mounting has a front panel that is also 19 inches wide and includes mounting flanges or ears with holes that align with the holes on the rack rails. Devices are then secured to these rails using screws or a combination of cage nuts and bolts. For heavier or deeper equipment like servers and most UPS units, rail kits are used; these attach to the rack’s vertical posts (front and rear in a 4-post rack) and provide a shelf-like support for the device to slide in and bear its weight.

Mergulhe mais fundo: The EIA-310 Standard and its Components

The magic of rack mounting is largely thanks to the EIA-310 standard, which defines these key elements:

• 19-inch Standard Width: This refers to the width of the equipment’s front mounting panel. The actual chassis of the equipment is slightly narrower to fit entre the vertical mounting rails of the rack.
• Rack Unit (U): The height of rack-mountable equipment is standardized in "U" unidades, where 1U = 1.75 polegadas (44.45 milímetros). Equipment is typically 1U, 2U, 3U, etc., high. This allows for precise planning of how much gear can fit into a rack.
• Vertical Mounting Rails (Postagens):
  • 2-Post Racks (Telco Racks): Have two centrally located vertical posts. Generally used for lighter equipment like patch panels and some network switches. Not usually suitable for deep or heavy UPS units.
  • 4-Post Racks (Server Racks/Cabinets): Have four vertical posts (two at the front, two at the rear). These are essential for supporting deeper and heavier equipment like servers and most rackmount UPS units, providing stable four-point mounting.
• Mounting Holes: The vertical rails have holes for attaching equipment. These can be:
  • Square Holes: Common in modern server racks. They require cage nuts, which clip into the square holes to provide a threaded hole for screws.
  • Round Holes (Unthreaded): Require nuts and bolts.
  • Round Holes (Threaded): Less common now, but allow screws to be directly threaded into the rail (Por exemplo, 10-32, 12-24, or M6 threads).
• Rail Kits: These are crucial for most servers and UPS units.
  • Fixed Rails (or Shelf Rails): Provide a simple shelf or fixed mounting points.
  • Sliding Rails: Allow the equipment to be pulled out from the rack (like a drawer) for easier access and servicing without having to fully remove it. Most servers and many UPS units use sliding rails.
  • Rail kits must be compatible with both the equipment and the specific type and depth of the rack.

This standardized system allows equipment from many different manufacturers to be neatly integrated into the same rack, which is incredibly efficient.

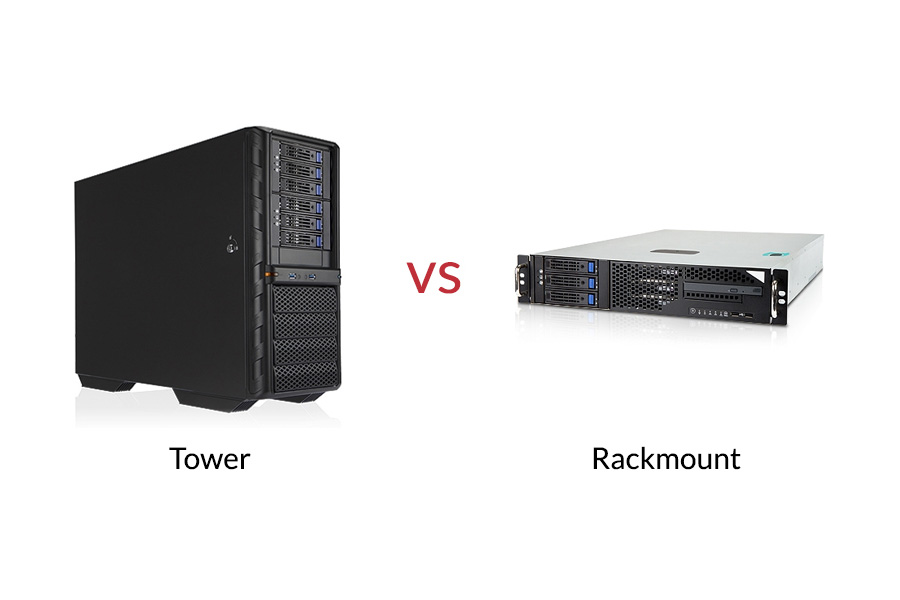

What is the difference between rack mounted UPS and tower UPS?

When you’re shopping for an Uninterruptible Power Supply, you’ll quickly notice two main physical styles: "rack mounted" and "tower." What exactly sets these apart, and how do you know which one is the right fit for your needs? It primarily comes down to their physical design and where they are intended to be installed.

The main difference is their form factor and intended deployment. Rack mounted UPS units are designed to be relatively flat and wide (19 polegadas) to be installed horizontally into standard equipment racks, usually secured by rails. Tower UPS units are standalone, upright devices, similar in appearance to a small desktop computer tower, designed to sit on the floor or a desk next to the equipment they protect. Functionally, both types can offer similar levels of power protection (Por exemplo, standby, line-interactive, or online double-conversion technologies) and similar capacities, but their physical shape dictates their best use case.

Mergulhe mais fundo: Choosing the Right Form Factor

Let’s compare them across a few points:

• Physical Design:
  • Montagem de rack: Horizontal orientation, typically 1U to 4U in height (1.75 para 7 polegadas), e 19 polegadas de largura. Designed to be supported by rails within a rack.
  • Torre: Vertical orientation, designed to stand freely.
• Instalação:
  • Montagem de rack: Requires an equipment rack with available U-space and a compatible rail kit. Installation can be more involved due to fitting rails and sliding/lifting the unit into place (often heavy).
  • Torre: Simpler physical installation – just place it where needed (considering ventilation) and plug it in.
• Melhor caso de uso:
  • Montagem de rack: Ideal for server rooms, network closets, AV racks, or any environment where IT equipment is already consolidated into racks. Saves floor space and integrates neatly.
  • Torre: Best for protecting individual workstations, desktop setups, point-of-sale systems, or small standalone servers and networking equipment that are not rack-mounted.
• Eficiência espacial: Rackmount units are highly space-efficient in environments that already utilize racks because they use existing vertical space. Tower units will take up floor or desk space.
• Resfriamento & Fluxo de ar: Rackmount UPS units are designed with airflow patterns (often front-to-back or side-to-side) that are compatible with the cooling strategies of server racks. Tower units typically draw air from the front and exhaust out the back.
• Características: Both can offer similar electrical protection features (AVR, sine wave output, battery backup times depending on load and battery capacity). No entanto, rackmount UPS units targeted at IT environments may more consistently offer advanced features like network management cards, environmental sensor support, and hot-swappable batteries.
• Convertible UPS Models: Some UPS¹. units are "convertible," meaning they can be used in a tower orientation or, with an included or optional rail kit and sometimes rotating display panels, be mounted in a rack. These offer flexibility if your needs might change.

Gycx Solar reflection: "For our Gycx Solar clients, if they have a small, rack-mounted data logger or communication gateway for their solar and battery system, a compact rackmount UPS is a perfect fit to ensure that vital link stays powered. If it’s just a desktop computer monitoring the system, a tower UPS is usually simpler and more cost-effective."

The key is matching the UPS form factor to your equipment’s environment.

Mounting a rackmount UPS properly is essential for the safety of your equipment and personnel, as well as for the longevity and performance of the UPS itself. By understanding rack standards, planning your layout, ensuring your rack is securely anchored, and carefully following the installation steps for your specific UPS model, you can create a reliable and professional power protection setup.

While Gycx Solar’s expertise lies in solar energy systems and large-scale battery storage, we understand that the principles of safe and secure equipment installation are universal. If you’re integrating critical monitoring or control components for your energy system and have questions about best practices for their setup, feel free to reach out to our knowledgeable team.
