Product Description

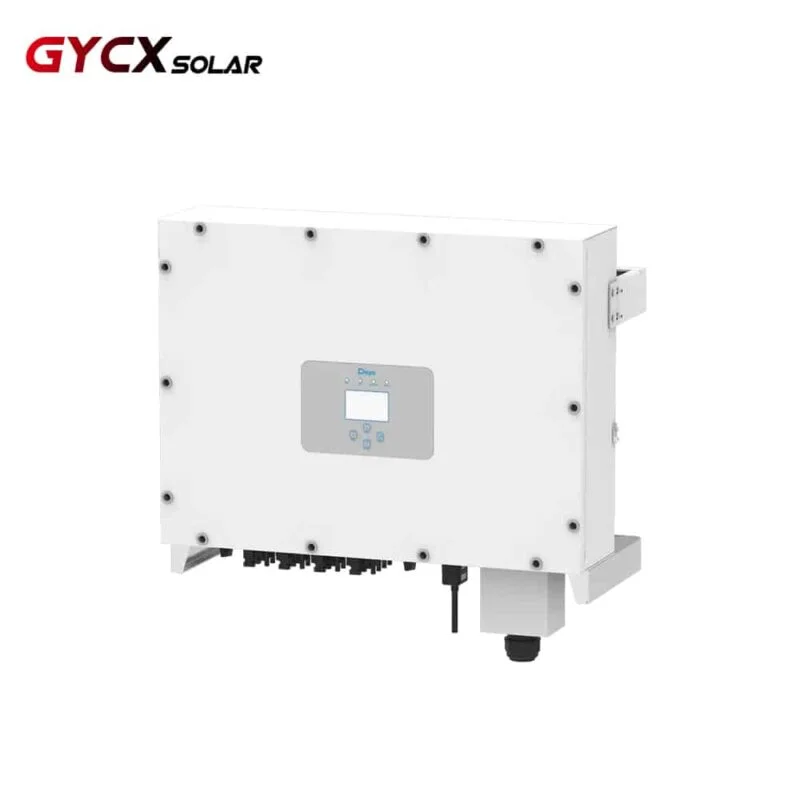

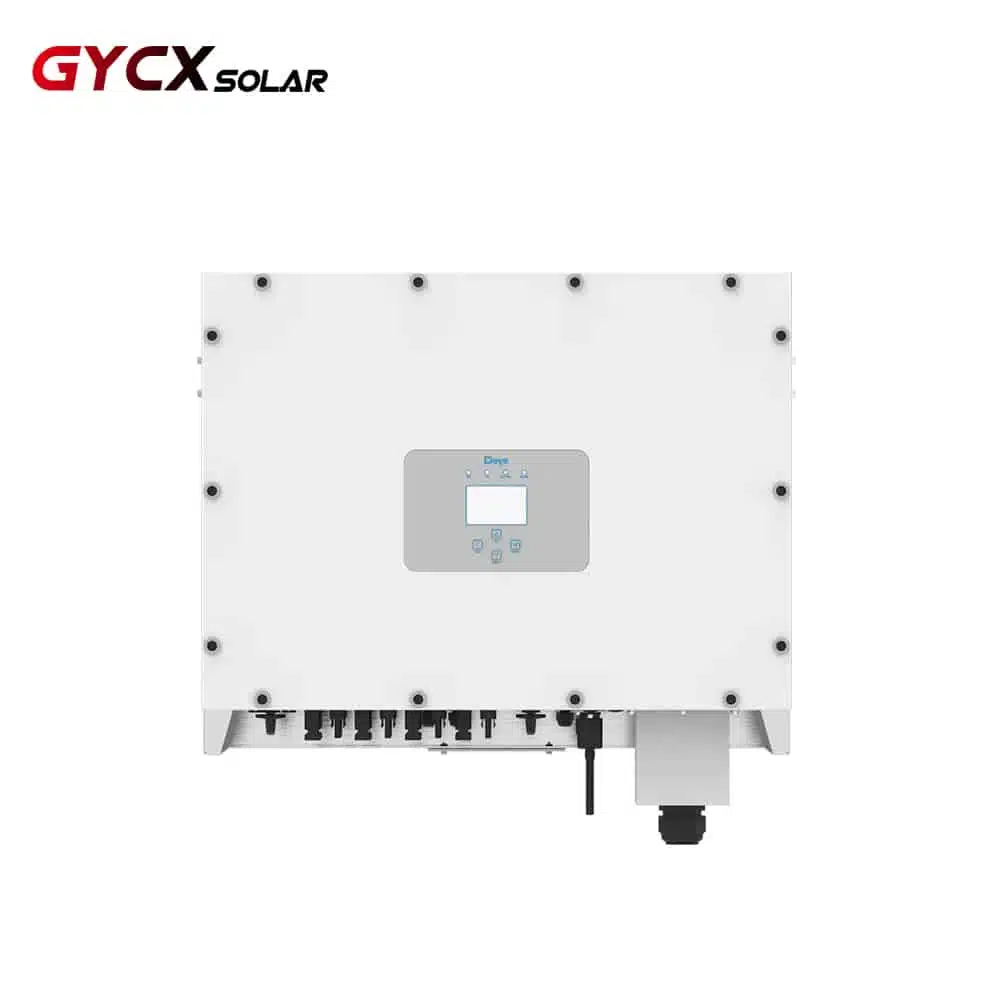

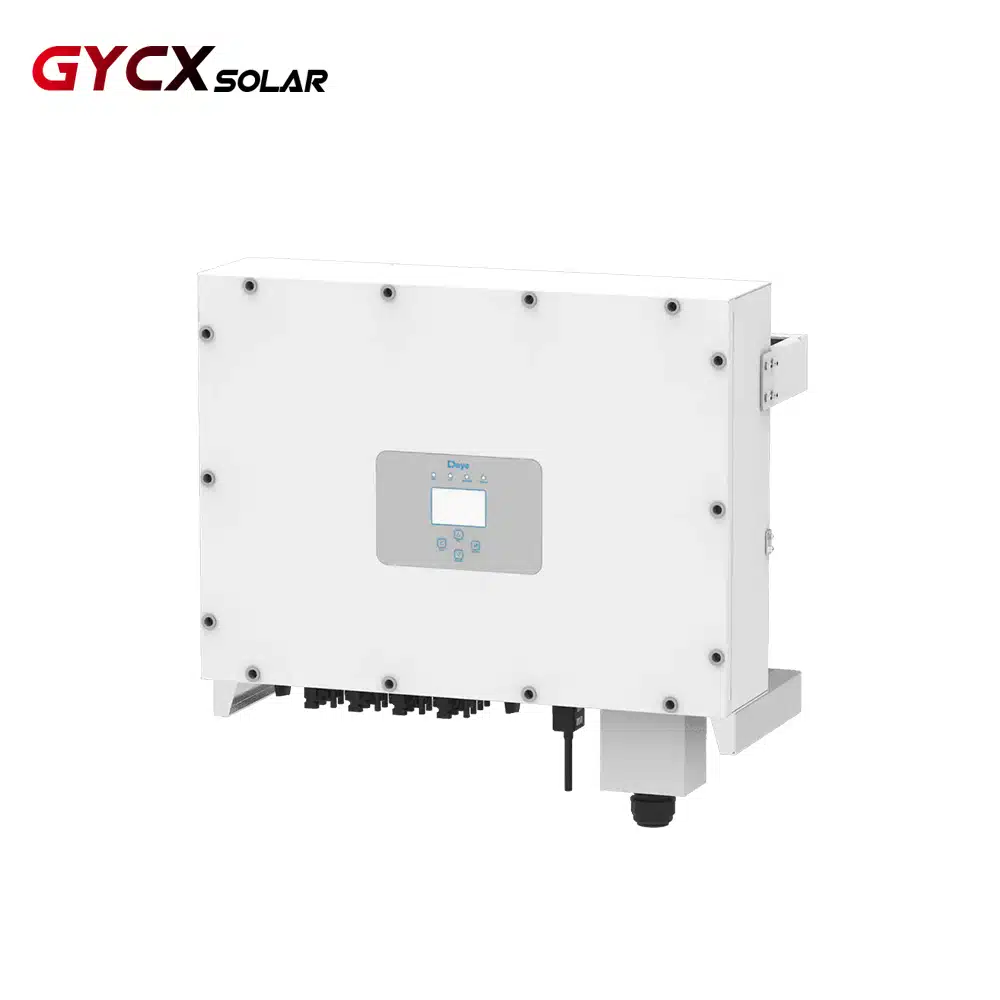

This series inverter is specifically designed for the 127/220Vac and 133/230Vac three-phase systems, offering rated power options of 33KW, 40KW, 45KW, and 50KW. It features a large LCD screen and user-friendly buttons, ensuring easy operation and maintenance. With its compact design and high-power density, this series supports a 1.3 DC/AC ratio, allowing for cost savings in device investment. Additionally, the smart monitoring platform enables immediate remote shutdown in case of accidents, making it easier to manage and maintain PV plants. It also allows for remote parameter settings and firmware updates, further simplifying PV plant operation and maintenance.
PV String Input Data
| Max. PV Input Power (kW) | 29.9-39 |
| Max. PV Input Voltage (V) | 800 |
| Start-up Voltage (V) | 250 |
| MPPT Voltage Range (V) | 200-700 |
| Rated PV Input Voltage (V) | 400 |
| Max. Operating PV Input Current (A) | 40+40+40， 40+40+40+40 |
| Max. Input Short Circuit Current (A) | 60+60+60, 60+60+60+60 |
| No. of MPP Trackers/No. of Strings per MPP Tracker | 3/3+3+3, 4/3+3+3+3 |
AC Output Side
| Rated AC Output Active Power (kW) | 23-30 |
| Max. AC Output Apparent Power (kVA) | 23-30 |
| Rated Output Voltage/Range (V) | 127V/220V, 133V/230V 0.85UN-1.1UN |
| Grid Connection Form | 3L/N/PE |
| Rated Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
| Total Current Harmonic Distortion THDi | <3% |
| DC Injection Current | <0.5%ln |
