Product Description

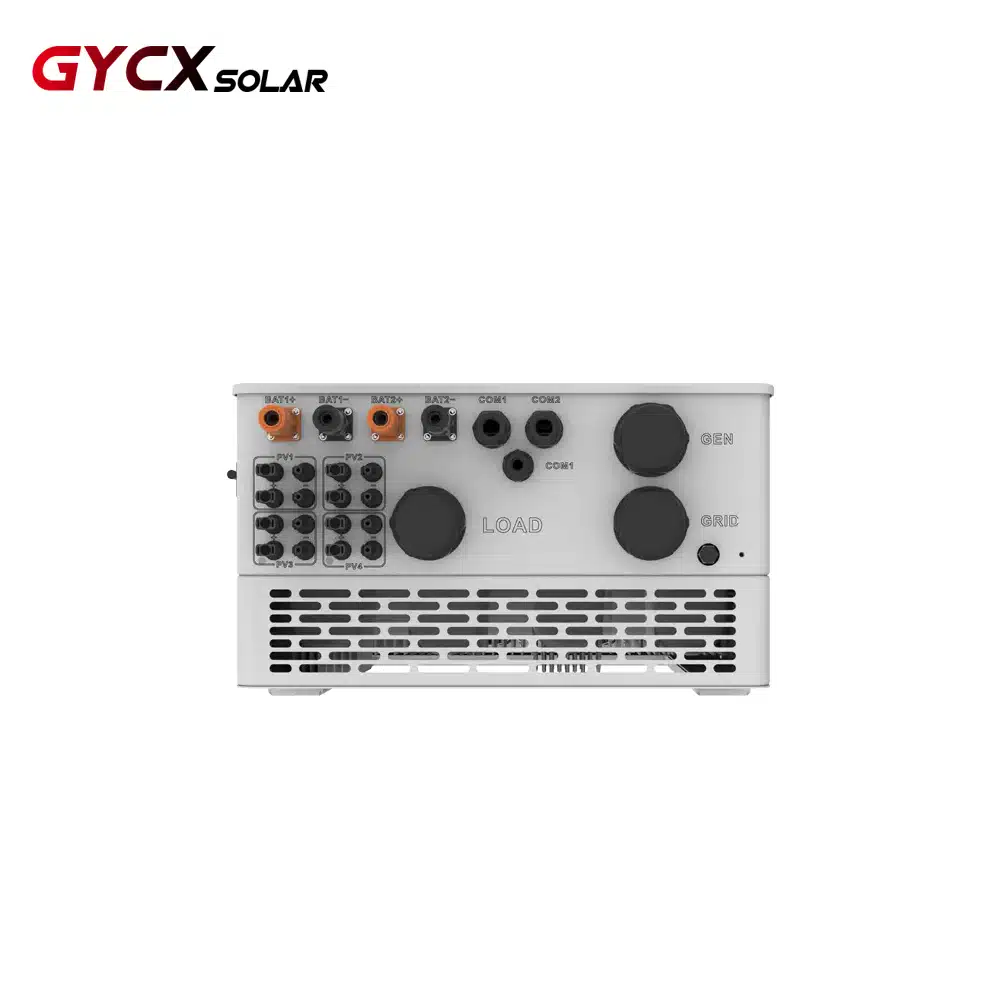

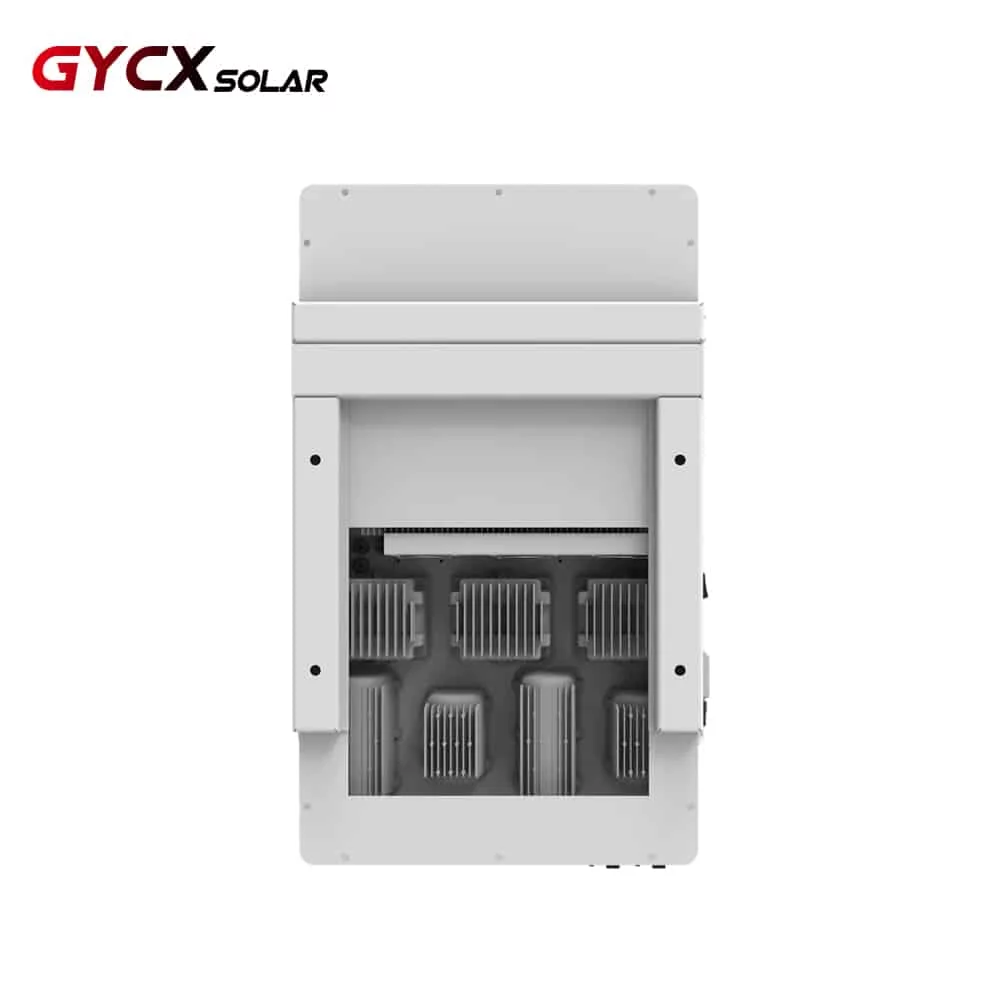

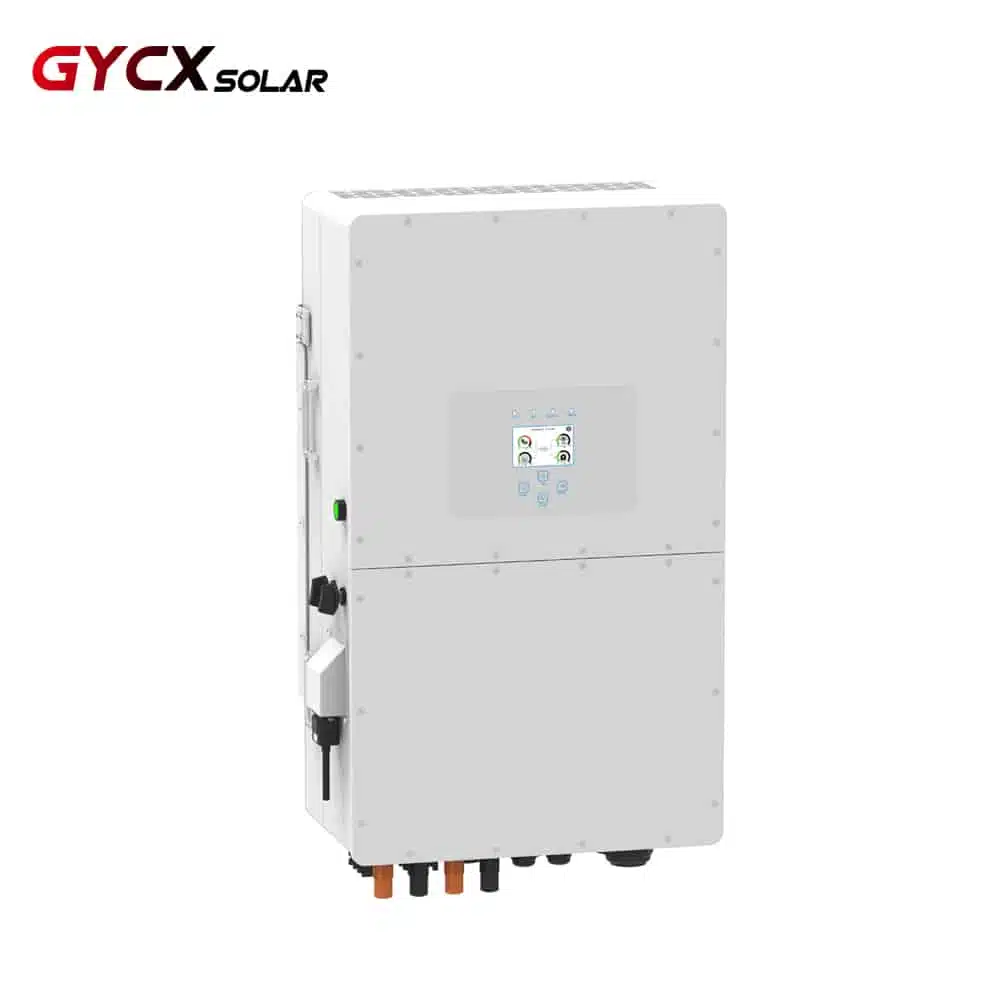

The SUN-29.9/30/35/40/50K-SG01HP3-EU-BM2/3/4 is an innovative series of three-phase hybrid inverters that are compatible with high-voltage (160-700V) HV batteries, resulting in improved system efficiency and reduced heat dissipation. These inverters have a compact design and high-power density, allowing for a 1.3 DC/AC ratio and ultimately saving on device investment. Additionally, they support three-phase unbalanced output, expanding the range of application scenarios. Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier.
Battery Input Data
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 160~800 |
| Max. Charging Current (A) | 50+50 |
| Max. Discharging Current (A) | 50+50 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS/td> |
| Number of Battery Input | 2 |
PV String Input Data
| Max. DC Input Power (W) | 38870-65000 |
| Max. DC Input Voltage (V) | 1000 |
| Start-up Voltage (V) | 180 |
| MPPT Voltage Range (V) | 150-850 |
| Rated DC Input Voltage (V) | 600 |
AC Input/Output Data
| Rated AC Input/Output Active Power (W) | 29900-50000 |
| Max. AC Input/Output Apparent Power (VA) | 5500-27500 |
| Max. Continuous AC Passthrough (grid to load) (A) | 60,70,83.3 |
| Peak Power (off grid) | 1.5 time of rated power, 10S |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
| Rated Input/Output Voltage/Range (V) | 220/380V, 230/400V 0.85Un-1.1Un |
| Rated Input/Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 |
