Product Description

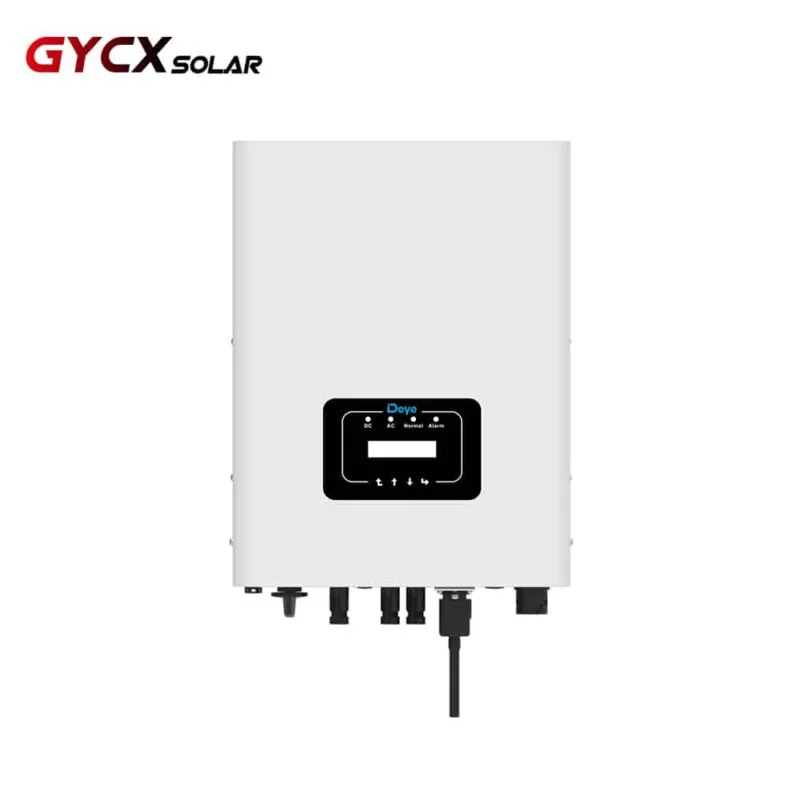

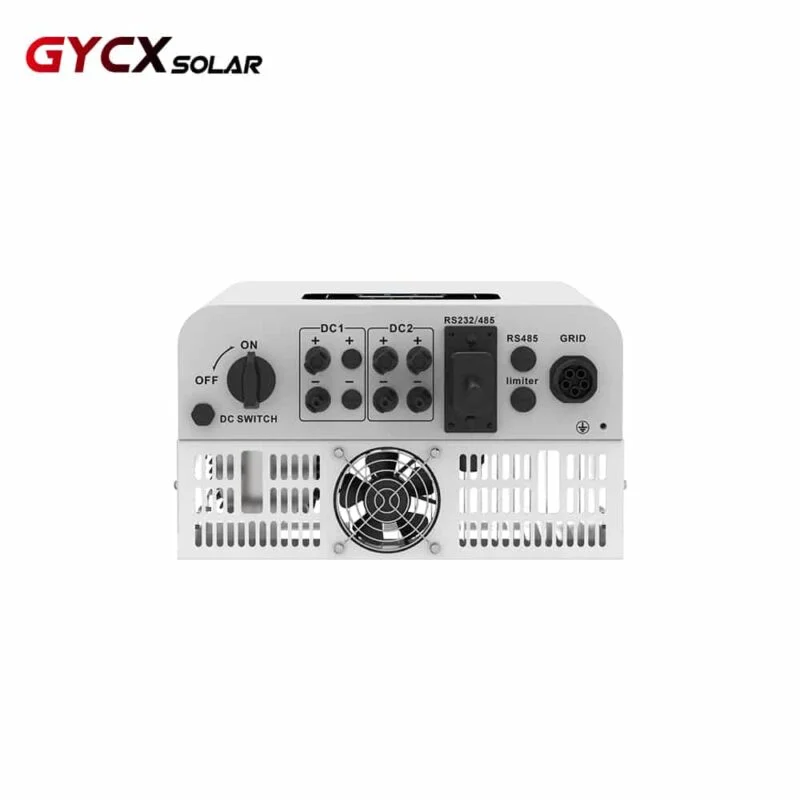

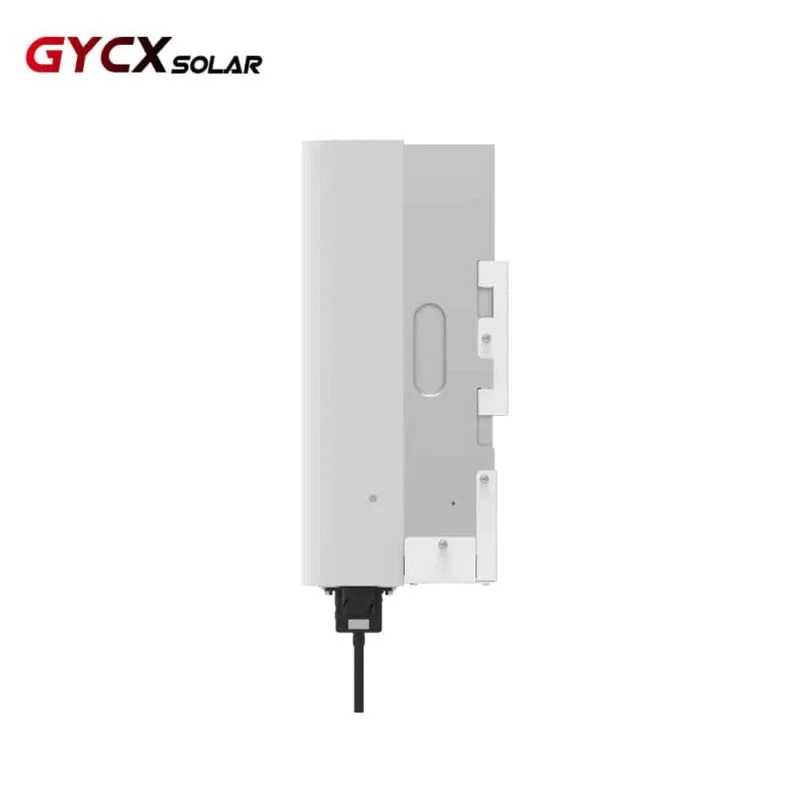

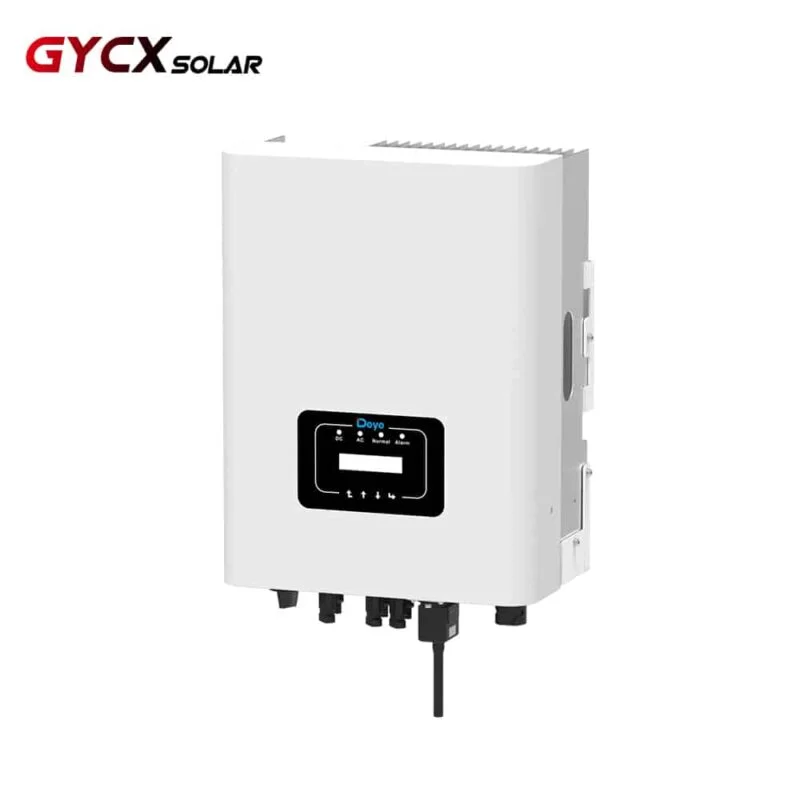

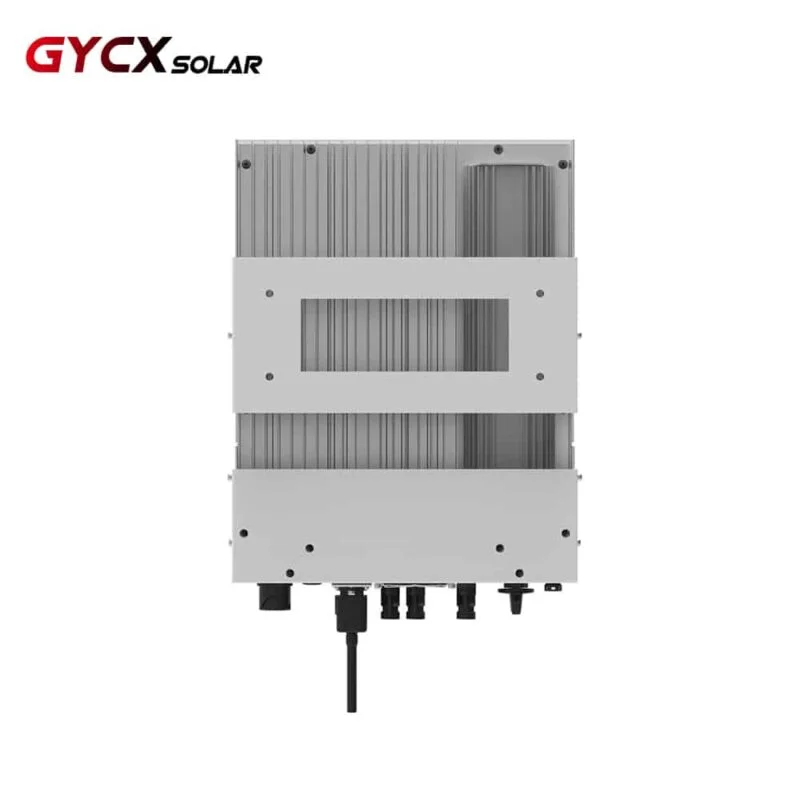

This particular inverter series is specifically created for the 127/220Vac three-phase system, making it particularly suitable for regions in South America. Its compact design allows for easy installation and operation. The inverter supports a wide range of AC output voltages, ensuring extended working hours and enhancing economic advantages. Additionally, the smart monitoring platform enables immediate remote shutdown in case of accidents, as well as remote parameter settings and firmware updates, simplifying the operation and maintenance of PV plants.
PV String Input Data
| Max. PV Input Power (kW) | 7.8-10.4 |
| Max. PV Input Voltage (V) | 800 |
| Start-up Voltage (V) | 250 |
| MPPT Voltage Range (V) | 200-700 |
| Rated PV Input Voltage (V) | 350 |
| Max. Operating PV Input Current (A) | 13+13,13+26 |
| Max. Input Short Circuit Current (A) | 19.5+19.5,19.5+39 |
| No. of MPP Trackers/No. of Strings per MPP Tracker | 2/1+1,2/1+2 |
AC Output Side
| Rated AC Output Active Power (kW) | 6,8 |
| Max. AC Output Apparent Power (kVA) | 6-8 |
| Rated Output Voltage/Range (V) | 127V/220V, 133V/230V 0.85UN-1.1UN |
| Grid Connection Form | 3L/N/PE |
| Rated Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
| Total Current Harmonic Distortion THDi | <3% |
| DC Injection Current | <0.5%ln |
GYCX Solar: Your Path to a Brighter Future
GYCX Solar is your gateway to a brighter, more sustainable future. With our cutting-edge solar panels and unbeatable quality, we offer the best option for harnessing the power of the sun. Our honest team, affordable pricing, and comprehensive solutions make going solar a breeze.
Join us today and embrace the boundless potential of solar energy for a greener tomorrow.
