Product Description

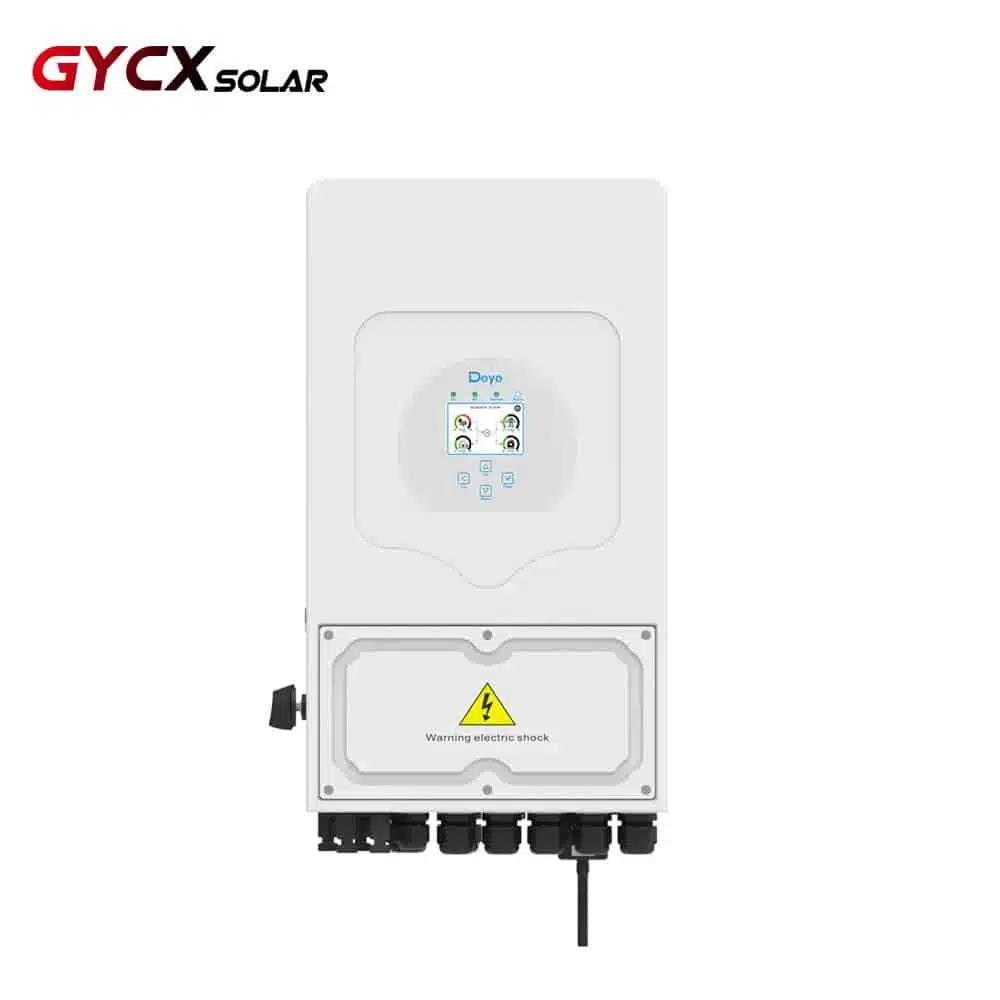

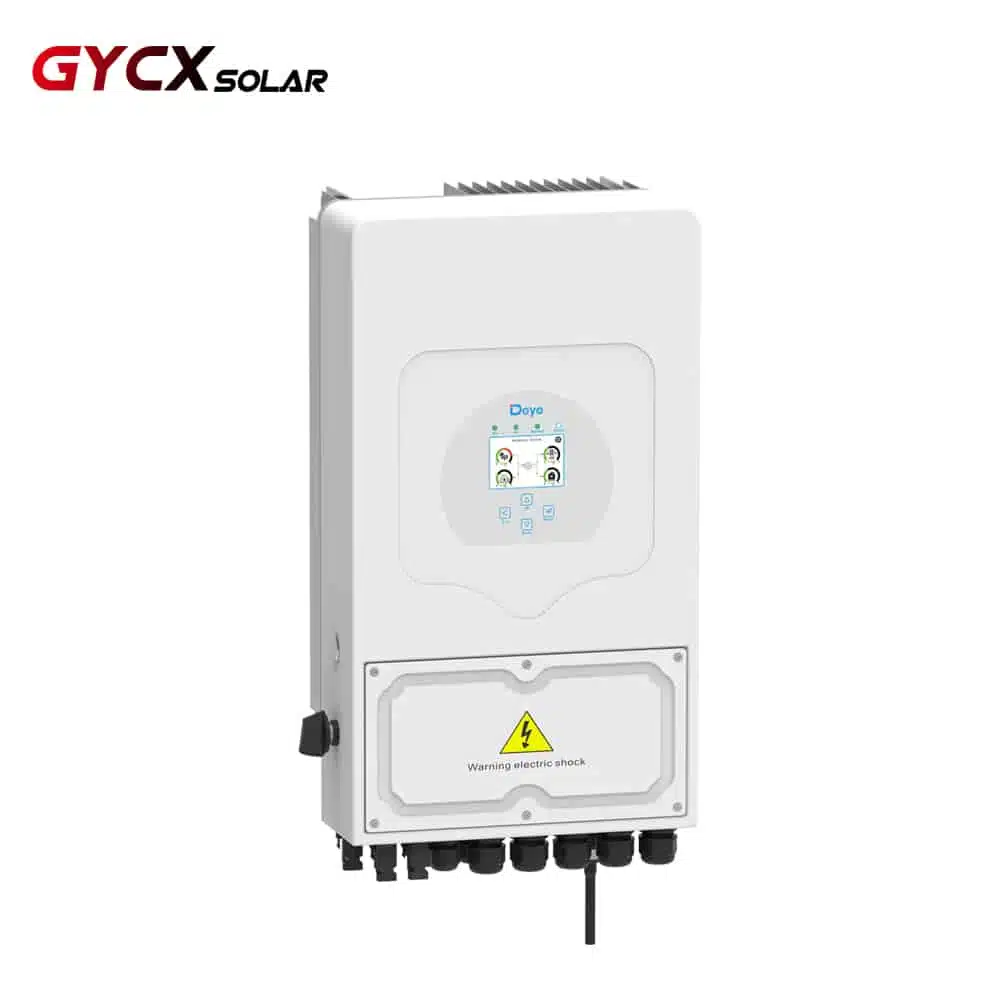

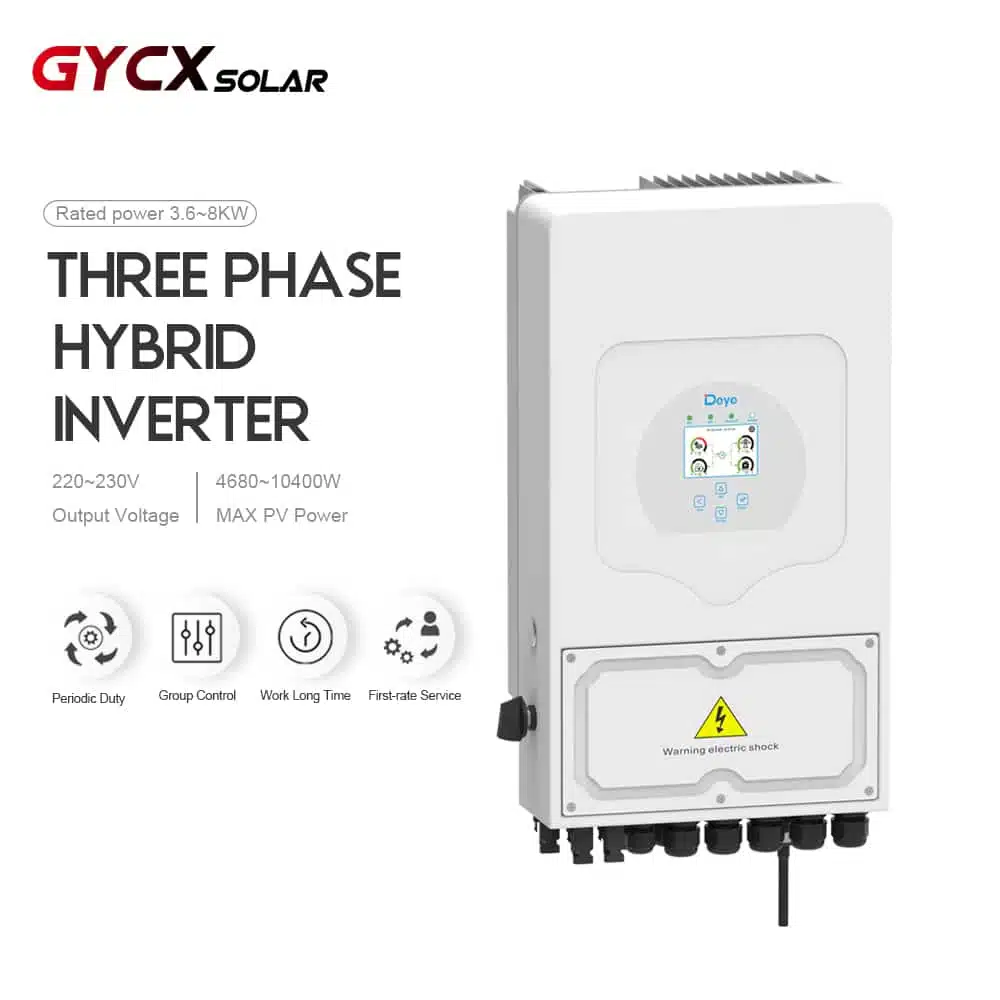

SUN 3.6/8K-SG05 is a hybrid inverter designed for residential and light commercial use, offering increased self-consumption of solar energy and enhanced energy independence. During daylight hours, the PV system generates electricity that is first supplied to the loads. Any surplus energy is then used to charge the battery through the SUN 3.6/8K-SG05 inverter. The stored energy can be released as needed by the loads. In the event of a grid blackout, the battery can also be charged by a diesel generator, ensuring a continuous power supply. Additionally, the inverter is equipped with an RS485/CAN port for battery communication. Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier.
Battery Input Data
Battery Type | Lead-acid or Lithium-ion |
Battery Voltage Range (V) | 40~60 |
Max. Charging Current (A) | 90-190 |
Max. Discharging Current (A) | 90-190 |
Charging Strategy for Li-ion Battery | Self-adaption to BMS/td> |
Number of Battery Input | 1 |
PV String Input Data
Max. DC Input Power (W) | 4680-10400 |
Max. DC Input Voltage (V) | 500 |
Start-up Voltage (V) | 125 |
MPPT Voltage Range (V) | 150-425 |
Rated DC Input Voltage (V) | 370 |
AC Input/Output Data
Rated AC Input/Output Active Power (W) | 3600-8000 |
Max. AC Input/Output Apparent Power (VA) | 3960-8800 |
Max. Continuous AC Passthrough (grid to load) (A) | 35,40,50 |
Peak Power (off grid) | 2 time of rated power, 10S |
Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
Rated Input/Output Voltage/Range (V) | 220/230 0.85Un-1.1Un |
Rated Input/Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 |
GYCX Solar: Your Path to a Brighter Future
GYCX Solar is your gateway to a brighter, more sustainable future. With our cutting-edge solar panels and unbeatable quality, we offer the best option for harnessing the power of the sun. Our honest team, affordable pricing, and comprehensive solutions make going solar a breeze.
Join us today and embrace the boundless potential of solar energy for a greener tomorrow.
