Higher Revenue
9-12 MPP Trackers, high single circuit tracking accuracy, fast dynamic response and higher power generation
150% DC Input Oversizing
Maximum efficiency of 98.7%. Wide MPPT voltage range: 180V-1000V
Compatible with high power modules
Intelligent
Simple O&M
Smart I-V Curve Diagnosis Function: locate PV string faults accurately and automatically detect faults
Intelligent Fault Detection: ac-side voltage and current waveforms real-time recorded, fast fault location
Support RS485(WiFi/DRM/Bluetooth optional): remote monitoring and operation via PC or mobile phones
Reliable

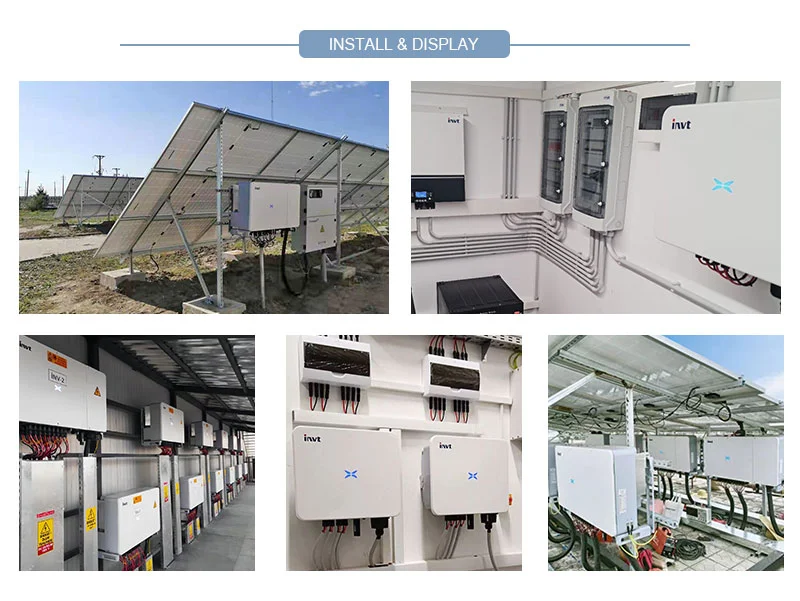

IP66 Protection degree: support outdoor installation
DC & AC Type II SPD: prevent lightning damage
AFCI Function (Optional): when an arc-fault is detected the inverter immediately stops operation
Input (DC)
| Max. Input Power (kW) | 150-160 |
| Max. Input Voltage (V) | 1100 |
| Start Voltage (V) | 250 |
| Rated Input Voltage (V) | 620,730,780 |
| Full-load MPP Voltage Range (V) | 530-850,560-850 |
| MPPT Voltage Range (V) | 180-1000 |
| Number of MPP Trackers | 9,10,12 |
| Number of String per MPPT | 2 |
| Max. Current per MPPT (A) | 30 |
| Max. Short Circuit Current per MPPT (A) | 40 |
Output (AC)
| Max. Output Current (A) | 158.8-160.4 |
| Rated Output Power (kW) | 100-136 |
| Max. Output Power (kVA) | 110-150 |
| Rated AC grid frequency | 50Hz/60Hz |
| Rated Grid Voltage | 230Vac/400Vac, 277Vac/480Vac, 311Vac/540Vac, 3L/N/PE,3L/PE |
| Power Factor | >0.99(0.8leading ~ 0.8lagging) |
| THDi | <3% (Rated Power) |
GYCX Solar: Your Path to a Brighter Future
GYCX Solar is your gateway to a brighter, more sustainable future. With our cutting-edge solar panels and unbeatable quality, we offer the best option for harnessing the power of the sun. Our honest team, affordable pricing, and comprehensive solutions make going solar a breeze.
Join us today and embrace the boundless potential of solar energy for a greener tomorrow.
